Good quality-Tubular belt conveyor

ZOOMRY

Engaged in conveyor system field more than two decades.

Pipe conveyor system

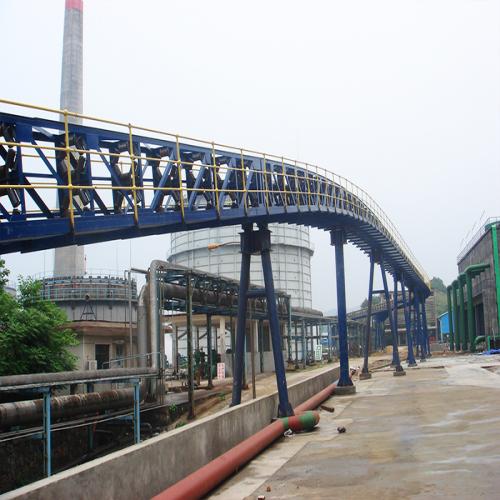

Tubular belt conveyor

Tubular belt conveyor is an enclosed belt conveyor that features a closed-trough belt to protect materials conveyed against sun, rain, wind and other environmental factors, while protecting the environment and people from hazardous and dusty bulk goods since these materials cannot escape from the closed belt system. Zoomry designs, manufactures and supplies tubular belt conveyors to suit customer's specific needs of bulk material handling.

  • Product Detail

Specification:

Nominal tube diameter (mm)

100

150

200

250

300

350

400

450

500

600

700

850

Nominal belt width (mm)

430

600

800

1000

1200

1400

1600

1800

2000

2250

2550

3100

Cross sectional area (m2) (75%)

0.006

0.013

0.023

0.041

0.049

0.066

0.108

0.131

0.155

0.216

0.280

0.404

Tubular <a href=https://www.zoomryhi.com/belt-conveyor.html target='_blank'>belt conveyor</a>

Features:

Having the benefits of high degree of energy efficiency, safety and reliability;

More safe and environmentally friendly when compared to conventional belt conveyors, either the top belt or bottom belt is folded around the handled materials, so that spreading of dust contained materials can be efficiently avoided, and valuable products are also safeguarded from theft;

The unique design of inclination and horizontal curves of smaller radius allows the materials to be flexibly transported along the vertically or horizontally curved conveyor path, that means a single tubular belt conveyor can take the role of multiple conventional belt conveyors. Therefore, the total conveyor length and plant footprint can be drastically decreased for more cost savings, while satisfying the needs of companies and plants with confined spaces.
