In ports, mines, and large industrial sites, the efficiency of bulk material stacking directly determines the operational effectiveness of production chains. Traditional fixed stacking equipment, constrained by rigid structures, has long faced pain points such as fixed operating radii, poor site adaptability, and high operational costs. As a disruptive innovation in bulk material handling, telescopic stackers are redefining industry standards globally through the integration of modular design and intelligent control technologies.
Limitations of Traditional Stacking Methods
Rigid Constraints on Space Utilization
Fixed stackers require preset rail systems, with operating radii typically locked within 15-30 meters. For example, in iron ore stockyards, traditional equipment forms trapezoidal stockpiles with a space utilization rate of only 58%, while telescopic stackers can increase this to 82% through 360° rotation and boom extension/retraction.
Lack of Dynamic Response Capability
According to the International Mining Safety Association (IMSA), in tropical rainy climates, traditional equipment lacks height-adaptive systems, resulting in a 4.3 times higher incidence of material pile collapses compared to intelligent systems. Telescopic stackers feature hydraulic compensation systems that adjust pitch angles (±15°) in real-time and automatically compensate for ground subsidence via pressure sensors, ensuring pile stability.
Rising Energy Consumption and Costs
Data from the National Mining Association (NMA) over the past five years shows that traditional stackers have energy costs fluctuating between $0.35-0.42 per ton, while intelligent telescopic systems, leveraging variable-frequency drives and path optimization algorithms, stabilize energy costs at $0.18-0.23 per ton—a 39%-47% reduction.
Technical Composition of Telescopic Stackers
Modular Mechanical Structure Design

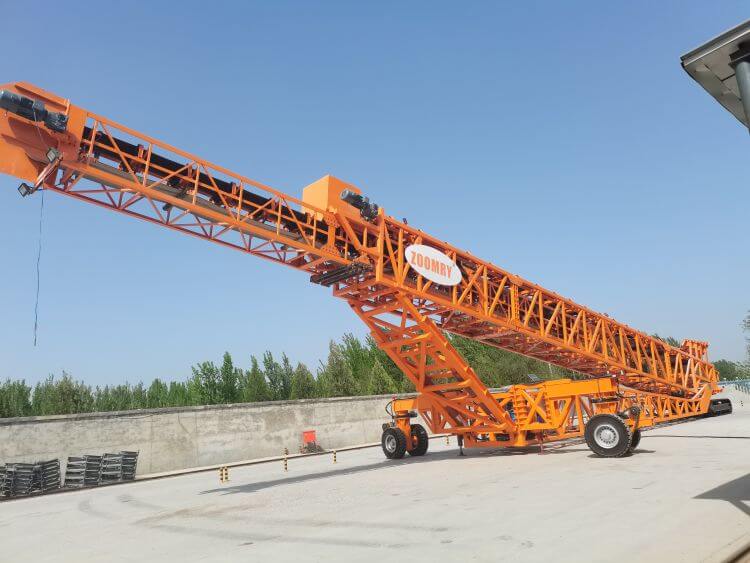

- Three-section telescopic boom: Modern stackers use high-strength alloy steel truss structures, with maximum extensions reaching 60 meters (e.g., Zoomry ZR160SF model), reducing weight by 28% compared to traditional designs.
- Hydraulic drive system: Equipped with pressure-compensating valve groups, ensuring hydraulic fluctuations ≤2.5MPa at a 40-meter operating radius.
- All-terrain mobile chassis: Four-wheel independent steering enables an 8-meter minimum turning radius, adapting to slopes ≤8°.
Evolution of Intelligent Control Technology
- PLC dynamic control: Laser rangefinders and tilt sensors fuse data to limit stacking height errors to ±10cm.
- Energy optimization algorithms: Variable-frequency speed regulation based on material properties keeps motor load rates within the 75%-85% high-efficiency range.
- Predictive maintenance system: Vibration sensors monitor transmission components in real-time, achieving a 92% fault预警 accuracy rate.
Core Advantages of Telescopic Stackers
Enhanced Space Utilization
- Dynamic coverage: Operating radius adjusts continuously from 18 to 60 meters, improving site utilization by 37%.
- Layered stacking: Rotational layering increases storage density by 45%.
- Obstacle avoidance: Retracted booms occupy only 1/3 the space of traditional equipment.
Reduced Operational Costs
| Metric | Optimization | Certification Basis |
|---|---|---|
| Energy efficiency | 40-45% lower consumption | ISO 50001 compliance |
| Labor dependency | 60% fewer operators | TÜV ergonomics certification |
| Maintenance intensity | 70%+ fewer service intervals | Rheinland MTBF 10,000-hour certification |
Environmental Compliance
- Enclosed conveying: Dust emissions ≤5mg/m³ (meets ISO 23875).
- Low-noise design: 1/3 quieter than traditional equipment.
- Zero hydraulic leaks: IP68-rated sealing systems.
Technical Criteria for Selecting Telescopic Stackers
Structural Strength Verification
At maximum extension, finite element analysis must confirm deflection ≤1/500 of boom length (L/500), with a safety factor ≥2.5. For a 60-meter stacker, deformation should be ≤12cm, withstanding 9-level gusts.
Hydraulic System Performance
High-end models integrate load-sensing proportional valves and dual-pump merging, maintaining ≤3% flow fluctuation at 25MPa. Oil temperature control modules stabilize at 45±5°C to prevent seal degradation. Zoomry ZR series’ closed-loop systems reduce energy use by 18% while boosting response speed.
Intelligent Control Essentials
Collision avoidance systems combine millimeter-wave radar and vision recognition for 360° monitoring within 5 meters. Auto-leveling adapts to ±8° slopes, and remote diagnostics cut troubleshooting time by 75%. Leading models enable seamless PLC-SCADA integration.
Environmental Adaptability
Coastal units must meet ISO 12944 C5M corrosion resistance (3,000-hour salt spray testing). Arctic models require -40°C cold-start systems (hydraulic preheating, frost-resistant cables). Dusty environments demand IP66-rated conveyors with self-cleaning sensors.
