With the acceleration of the global industrialization process, the trade volume of bulk commodities continues to rise. According to the data in 2025 Global Bulk Carrier Transportation Market Blue Book, the global bulk carrier transportation volume reached 4.5 billion tons in 2025, a year-on-year increase of 3.2%. This puts forward higher requirements for the capacity, reliability and adaptability of bulk material handling equipment. Having been deeply engaged in the bulk material handling field for many years, ZOOMRY accurately grasps the global market demand and launches the 3500TPH Heavy-Duty hopper feeder Conveyor. With its ultra-large throughput of 3500 tons per hour, strong working condition adaptability and intelligent operation experience, it has become the preferred equipment for high-capacity bulk material handling projects worldwide.

As the critical link equipment connecting material storage and subsequent processing, the performance of the hopper feeder directly determines the operation efficiency and operating cost of the entire production line. Traditional feeding equipment often encounters problems such as material jamming, excessive wear and tear, and high energy consumption when dealing with large-particle-size materials, extreme working conditions or continuous high-load operations, which have become bottlenecks restricting the improvement of enterprise production capacity. The R&D of ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor is precisely targeted at these industry pain points. Integrating ZOOMRY's years of technical accumulation and global project practical experience, it achieves a dual breakthrough in capacity and reliability, providing stable and efficient bulk material feeding solutions for global customers.

---

I. Analysis of Core Advantages

1. Over 3500TPH Capacity Breakthrough

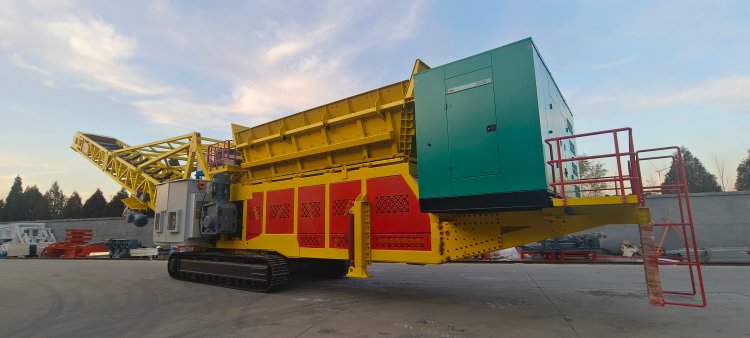

ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor ranks among the world's high-capacity feeding equipment with a rated throughput of 3500 tons per hour, far exceeding the mainstream capacity level of 2000-3000TPH in the industry. This capacity advantage stems from ZOOMRY's optimized design of the equipment structure: it adopts an ultra-large volume hopper (with an effective volume of up to 8.5 m³), which can directly receive the unloading of excavators, wheel loaders and other equipment, reducing the number of material transfer times and lowering the double handling cost; the optimized hopper inclination angle and internal flow guide structure, combined with high-strength wear-resistant chain plate conveying, ensure smooth material flow. Even for large ore blocks, coal and other materials with a particle size ≤ 1500 mm, uniform feeding can be achieved, avoiding capacity loss caused by local congestion.

2. Strong Working Condition Adaptability

Global industrial scenarios vary significantly, from the high temperature and humidity in Southeast Asia, heavy sandstorms in Africa, to the extreme cold in Northern Europe and low-pressure hypoxia in high-altitude mining areas, posing severe challenges to the environmental adaptability of equipment. ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor adopts a fully enclosed heavy-duty welded frame, made of Q355B high-strength steel. Integral aging treatment is carried out to eliminate internal stress, ensuring no deformation under high-load impact. The frame bearing capacity is increased by 30% compared with the industry standard.

For different extreme environments, the equipment is equipped with customized solutions: in low-temperature environments (-40℃ to -20℃), wide-temperature grade electrical control components and electric heating insulation electrical control cabinets are adopted to ensure the normal start-up of the hydraulic system and control system; in high-dust and high-humidity environments, core components are designed with IP65 protection grade, key connectors use aviation plug sealing, combined with positive pressure dust-proof devices, effectively preventing the intrusion of sand, dust and water vapor; in high-altitude areas (altitude ＞ 4000 m), power compensation design is carried out for the motor, with 1% power compensation for every 100 m increase in altitude, and at the same time, the electrical insulation performance is strengthened to ensure the stable operation of the equipment in low-pressure and hypoxia environments. Whether it is an open-pit coal mine in Xinjiang, a nickel mine in Indonesia or a copper mine in Chile, ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor can be easily adapted.

3. Intelligent and Efficient Operation

Under the trend of intelligent manufacturing, the intelligent level of equipment directly affects the operation efficiency of enterprises. ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor is equipped with an advanced PLC+SCADA intelligent control system, realizing full-process automatic operation and remote monitoring. Through the synergy of level radar and weighing module, the material flow is monitored in real time with an accuracy of ±2%, and the feeding speed is automatically adjusted according to the operation status of subsequent equipment (0.1-1.5 m/s stepless speed regulation), realizing precise coordination between the feeding link and the crushing and conveying links, avoiding idling or overload operation of the equipment.

The equipment is also equipped with an intelligent fault diagnosis system, which collects real-time operation data of core components through vibration sensors, temperature sensors, etc. When abnormal conditions such as chain wear, bearing overheating and material jamming occur, the system can quickly locate the fault point and issue an early warning, and at the same time support the automatic reverse obstacle removal function, reducing fault handling time. In addition, the equipment adopts a progressive centralized lubrication system, and the lubrication cycle can be programmatically controlled to meet the long-term protection needs under different working conditions, reducing the frequency of manual lubrication and lowering the operation and maintenance labor costs. Through intelligent upgrading, the equipment can realize unattended operation, significantly improving the automation level of the entire production line.

4. Green and Energy-Saving Design

With the increasingly stringent global environmental regulations, green and low-carbon has become one of the core competitiveness of industrial equipment. ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor has integrated the concept of energy saving since the design stage. It adopts a high-efficiency permanent magnet synchronous motor, which reduces energy consumption by 15%-20% compared with traditional asynchronous motors; the optimized transmission system adopts a hardened tooth surface reducer and splined connection, with the transmission efficiency increased to more than 96%, reducing energy loss; the equipment is also equipped with a variable frequency speed regulation system, which can dynamically adjust the motor power according to the material flow demand, avoiding invalid energy consumption.

In terms of environmental protection details, the equipment adopts a fully enclosed cover design, combined with dust-proof sealing devices, effectively controlling dust leakage during material transportation. The dust emission concentration is lower than 10mg/m³, meeting the EU CE certification and China GB standards; the optional noise reduction device controls the equipment operation noise below 85dB, improving the working environment.

---

II. Core Technical Parameters

Accurate technical parameters are the core guarantee for equipment adaptability. ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor provides flexible customized configurations according to the needs of different industries around the world. The core parameters of the standard configuration are as follows:

Parameter Item	Standard Configuration Value	Customization Range
Rated Throughput	3500t/h	3000-4000t/h
Applicable Material Particle Size	≤1500mm	≤2000mm (Customized)
Hopper Effective Volume	8.5m³	6-12m³
Chain Plate Width	2400mm	2000-3000mm
Feeding Speed	0.1-1.5m/s	0.1-2.0m/s (Customized)
Motor Power	90kW×2	75kW×2-110kW×2
Applicable Temperature Range	-20℃~50℃	-40℃~70℃ (Wide-Temperature Customized)
Protection Grade	IP65	IP66 (Enhanced Protection Customized)
Total Equipment Weight	About 85t	Adjusted According to Customized Configuration

Note: The above parameters can be customized according to the customer's specific working conditions (material characteristics, site conditions, capacity requirements) to ensure the precise matching between the equipment and the project needs.

---

III. Global Multi-Industry Applications

With its core advantages of high capacity and strong adaptability, ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor has been widely used in various fields such as global mining, ports, building materials, energy and chemical industry, and has become the core equipment of large-scale bulk material handling projects.

1. Mining Field

In open-pit or underground mining projects, the efficient transfer of ore is the key to improving production capacity. ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor can directly receive the unloading of excavators or loaders, and uniformly transport large ore blocks such as iron ore, copper ore and nickel ore to crushing equipment, avoiding ore blockage or impact damage to subsequent equipment.

2. Port Terminal Field

Port terminals are important hubs for bulk commodity trade, which have extremely high requirements for the efficiency of bulk material loading and unloading. ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor can work in coordination with Mobile Ship Loaders, truck unloaders and other equipment to realize the rapid loading and unloading of bulk commodities such as coal, grain and cement.

3. Building Materials Production Field

In the production process of building materials such as cement and sand aggregates, the precise proportioning of raw materials directly affects the product quality. Through precise flow control, ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor can uniformly transport raw materials such as limestone, gypsum and clinker to mills or mixing equipment in proportion, ensuring the accuracy of raw material proportioning.

4. Energy and Chemical Industry Field

In energy and chemical projects such as coal-fired power generation and coal chemical industry, the material transportation environment is often accompanied by high temperature, high pressure or flammable and explosive risks, which puts forward extremely high requirements for the safety and stability of equipment. ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor adopts explosion-proof design (Ex d I Mb level), combined with fire prevention and anti-static devices, which can safely transport high-risk materials such as coal, coke and chemical raw materials. In a coal chemical project in the Middle East, the equipment has been operating stably in a high-temperature (60℃) and high-dust environment, providing stable raw material supply for subsequent chemical reactions. The equipment has been operating without safety accidents so far and has won high recognition from customers.

---

IV. ZOOMRY: A Reliable Partner in the Global Bulk Material Handling Field

The excellent performance of ZOOMRY 3500TPH Heavy-Duty Hopper Feeder Conveyor stems from ZOOMRY's years of technical accumulation and strict pursuit of quality. As a world-leading manufacturer of bulk material handling equipment, ZOOMRY focuses on the R&D, production and sales of core equipment such as belt conveyors, telescopic stackers, mobile ship loaders, truck unloaders and hopper feeders, as well as components such as idlers, pulleys and cleaning scrapers. Its products cover more than 120 countries and regions around the world, serving leading enterprises in mining, ports, building materials, energy and other industries.

The company has a R&D team led by internationally renowned experts and has built a National Bulk Material Handling Engineering Technology Research Center. It invests 8% of annual sales revenue in R&D and has obtained more than 200 patented technologies in total, among which many core technologies have reached the international leading level. In the production and manufacturing link, the company adopts internationally advanced production equipment and testing instruments, and has established a strict quality management system. It has passed ISO9001 Quality Management System Certification, ISO14001 Environmental Management System Certification and OHSAS18001 Occupational Health and Safety Management System Certification. The products comply with international standards such as EU CE and US EPA, ensuring that each piece of equipment has excellent quality.

To better serve global customers, ZOOMRY has set up more than 20 overseas service centers around the world, equipped with professional technical service teams and sufficient spare parts warehouses, and can provide 24-hour rapid response services, including one-stop services such as equipment installation and commissioning, technical training, maintenance and repair, and spare parts supply. No matter which country or region the customer is located in, they can enjoy timely and professional technical support to ensure the long-term stable operation of the equipment.
