I. Why Does the Bucket Wheel Reclaiming Mechanism Frequently Get Blocked?

Blockage and arching of the bucket wheel reclaiming mechanism leading to weak reclaiming power is one of the most common faults in Bucket Wheel Stacker Reclaimers. The main causes include: high moisture content and high viscosity of materials, causing large materials to get stuck between the bucket and the chute; mismatch between bucket wheel speed and feed rate, resulting in low bucket fill rate and significantly reduced reclaiming efficiency. ZOOMRY Heavy Industry fully considers different material characteristics in its designs, adopting variable frequency drive systems that can adjust bucket wheel speed in real time based on material moisture content, effectively preventing blockage.

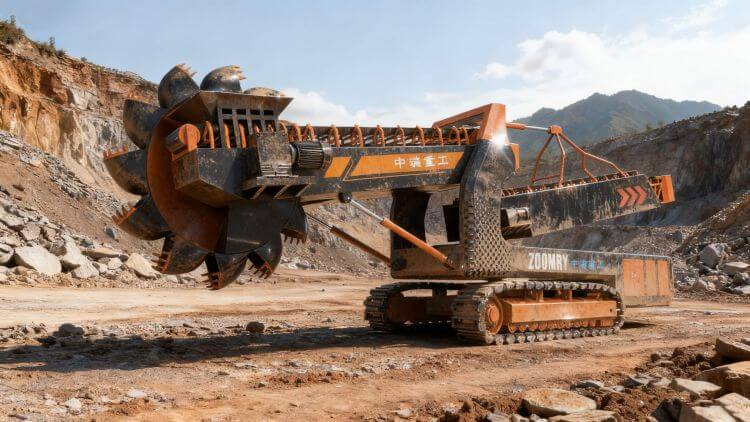

II. Why Is Bucket Wear So Severe?

Long-term erosion by hard materials such as sand, gravel, and ores is the main cause of bucket wear, cracking, and tooth loss. In addition, loose or fatigued bucket tooth fixing bolts, and direct wear on the bucket body steel after liner wear, all accelerate bucket failure. ZOOMRY Heavy Industry uses Mn13 high-manganese steel as the main bucket material, combined with replaceable wear-resistant liner design, significantly extending bucket life. At the same time, bucket teeth adopt high-strength bolt anti-loosening structures, supplemented by regular inspection schedules, effectively preventing tooth loss failures.

III. What to Do When Bucket Wheel Bearings Overheat, Make Abnormal Noise, or Seize?

Dust, rainwater, and salt spray entering bearing housings are the main external causes of bearing faults; lack or deterioration of lubricating grease, damaged bearing seals, and long-term heavy-load eccentric operation can all cause bearings to overheat, make abnormal noise, or even seize. ZOOMRY Heavy Industry adopts multiple labyrinth seal structures in bearing housing design, combined with IP65 protection class bearing housings, effectively resisting dust and moisture intrusion. The bearing lubrication system uses automatic lubrication devices to ensure bearings are always in good lubrication condition, significantly reducing bearing failure rates.

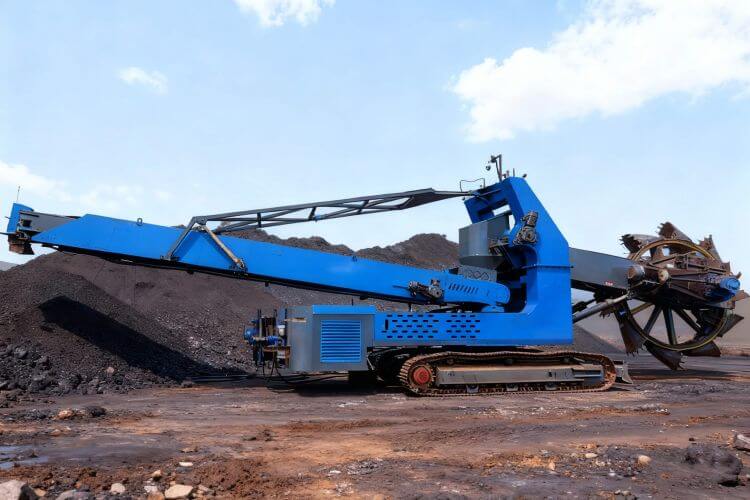

IV. Why Does the Bucket Wheel Chute Frequently Leak and Get Blocked?

Falling off of inner wear-resistant liners and insufficient chute inclination are the main structural causes of chute leakage and blockage; wet materials sticking to the inner wall forming accumulation layers lead to poor material flow and spillage. ZOOMRY Heavy Industry's chute design adopts large inclination angle chutes (≥60°), with inner liners made of bimetallic composite wear-resistant plates, combined with self-cleaning curved material guide chute design, effectively reducing material adhesion. Additionally, adjustable material guide plates are installed at the chute opening, allowing adjustment of discharge angle based on material characteristics to ensure smooth material flow.

V. How to Quickly Troubleshoot Significant Drop in Reclaiming Efficiency?

A drop in reclaiming efficiency is often caused by multiple factors: improper bucket wheel speed setting, severe bucket wear, chute blockage, belt slippage, etc. Quick troubleshooting should follow the principle of "from outside to inside, from easy to difficult": first check if the bucket wheel speed setting is reasonable, then check bucket and chute wear, and finally check belt tension. ZOOMRY Heavy Industry's intelligent control system can monitor key parameters such as bucket wheel current and belt speed in real time, automatically alerting and suggesting possible causes when reclaiming efficiency is abnormal, significantly reducing troubleshooting time.

VI. How to Ensure Reliability of Bucket Wheel Stacker Reclaimers in Extreme Cold or High Salt Spray Environments?

In extreme cold environments, lubricating oil viscosity increases and seals harden; in high salt spray environments, metal components are prone to corrosion and electrical components to short circuits. ZOOMRY Heavy Industry provides customized configurations for different environments: extreme cold environments equipped with low-temperature hydraulic oil heating systems and low-temperature start devices; port high salt spray environments using hot-dip galvanizing surface treatment and IP65 protection class electrical components, with key bolts using Dacromet anti-corrosion coating. With CE and EAC international certifications, ZOOMRY Heavy Industry bucket wheel stacker reclaimers have been successfully applied in high-cold regions such as Russia and Northern Europe, as well as high-temperature and high-humidity regions such as Southeast Asia and the Middle East.

ZOOMRY Heavy Industry – Your trusted bulk material handling equipment expert. For any questions regarding bucket wheel stacker reclaimers, please feel free to contact our technical team.
