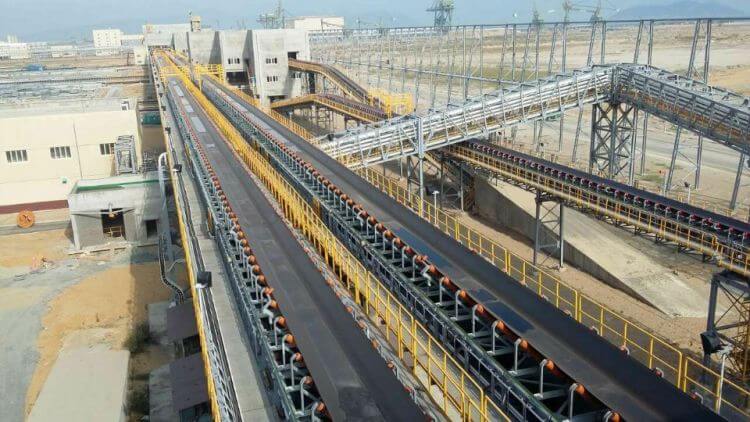

Conveyor belts (commonly used in mining, ports, power plants, chemical industry, and other fields) are core equipment for material conveying. However, during operation, they are prone to equipment damage or safety accidents due to faults such as deviation, slipping, overload, and tearing. Therefore, targeted safety protection devices must be equipped, which can be divided into 10 categories by function. Note: A summary table is provided at the end of the article for quick overview.

I. Belt Deviation Protection Devices

When a belt deviates from the center line, it may cause minor issues such as edge wear and material spillage, or more serious problems like jamming and shutdown. Belt deviation protection devices are divided into two categories: "monitoring and alarm" and "automatic correction".

Functions and Characteristics

Deviation Switch (Monitoring Type)

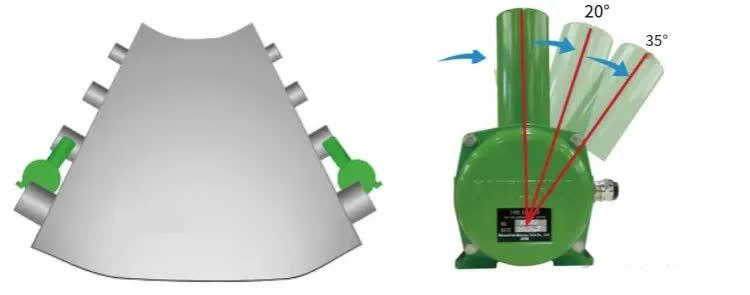

• Equipped with two-stage triggering: When the belt deviates 10-30cm from the center line (first stage), an audible and visual alarm is activated to prompt intervention; when the deviation exceeds the safety threshold (second stage), emergency shutdown is enforced to prevent fault escalation.

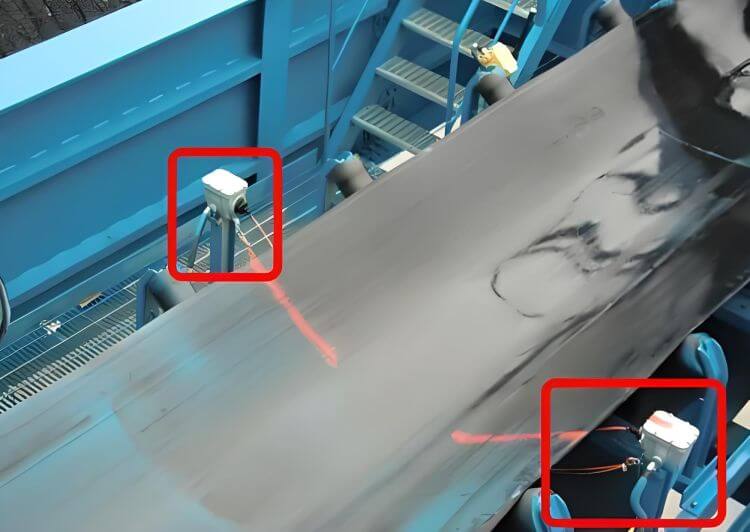

• Structure: Mechanical contacts or photoelectric sensing, installed on both sides of the belt, with a response time ≤ 0.5 seconds and resistance to dust interference, acting like an "electronic guardrail" for the belt.

Automatic Deviation Correction Device (Correction Type)

It can actively "pull back" the deviated belt through mechanical/hydraulic structures without shutdown:

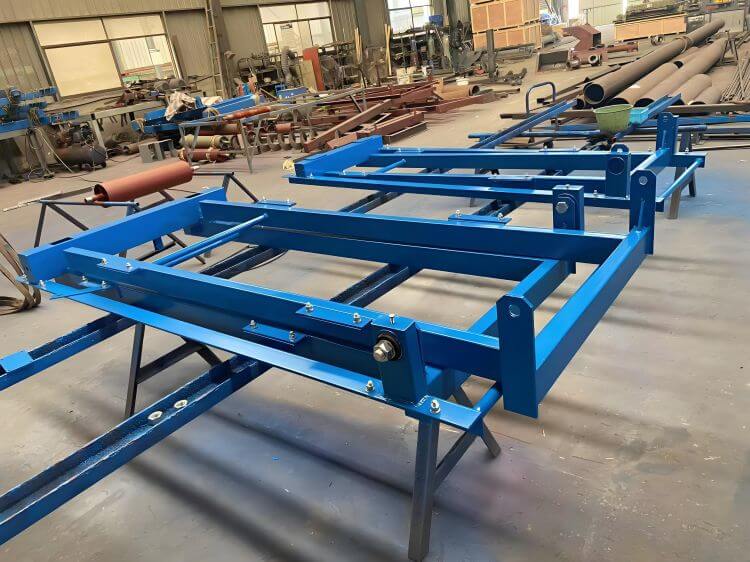

• Self-aligning idler: Pure mechanical design, which uses the friction of the belt to drive the idler rotation for passive deviation correction (low cost and maintenance-free);
• Hydraulic deviation corrector: Active drive with stronger correction force, suitable for wide belts (e.g., 1.8m-wide coal conveying belts in ports).

II. Belt Slipping Protection Devices

When the friction between the belt and the driving drum is insufficient, the phenomenon of "slow belt and fast drum" (slipping) will occur, which may cause minor material accumulation or more serious problems like overheating and fire due to friction. This device monitors the speed in real time to intercept risks in advance.

Functions and Characteristics

When the belt speed drops to 70%-80% of the rated speed (customizable), it first gives an alarm for early warning; if slipping persists, it enforces shutdown to prevent the risk of fire caused by friction between the belt and the drum.

Structure Types

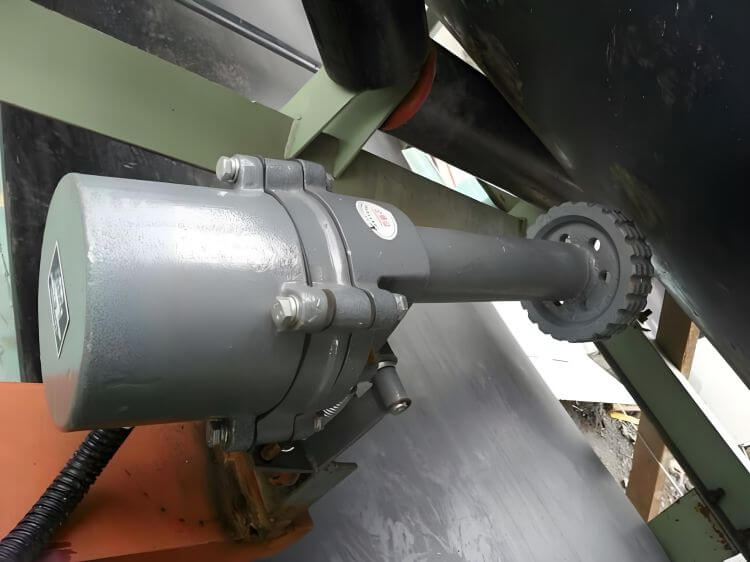

• Speed sensor: Magnetoelectric type (contact-type synchronous speed measurement with the belt) or photoelectric type (non-contact, identifying marks on the belt surface), with a speed measurement accuracy of ±0.5%, acting like a "speedometer" for the belt;
• Drum-linked detector: Directly connected to the driven drum, with mechanical triggering, strong resistance to dust and humidity (suitable for humid underground environments in mines), and no need for complex calibration.

III. Belt Tearing Protection Devices

Sharp edges of ores, metal impurities, and other substances are likely to scratch the belt, causing longitudinal tearing. If shutdown is not performed in time, the tear will spread rapidly, leading to the scrapping of the entire belt. This device can quickly intercept tearing faults.

Functions and Characteristics

Once a belt tear (tear >50mm) is detected, it immediately triggers shutdown + alarm to prevent the tear from spreading.

Structure Types

• Contact type (steel cable/plate type): Steel cables are embedded in the belt, and the switch is triggered when the cable breaks due to tearing; the switch is triggered when the plate is squeezed by the torn belt, featuring high mechanical reliability but requiring direct contact with the belt;
• Non-contact type (ultrasonic/infrared type): Ultrasonic waves scan the internal structure of the belt, and infrared rays identify changes in surface flatness, with no wear and long service life, suitable for high-dust environments (e.g., raw material belts in cement plants), acting like performing a "CT scan" on the belt.

IV. Emergency Shutdown Protection Devices

In case of emergency situations such as personnel straying into the area, equipment jamming, or fire, the belt needs to be "shut down with one key". This device is the final safety line and is divided into three types: along-the-line pull rope, emergency stop button, and emergency pull cable.

Functions and Characteristics

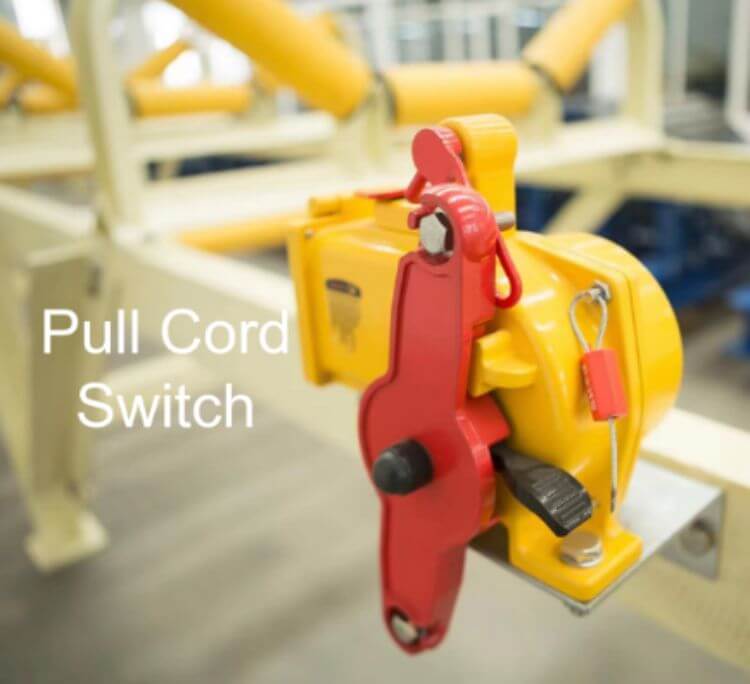

• Pull rope switch: One switch is installed every 30-50m along the belt; pulling the pull rope at any position triggers instant shutdown, covering the entire length, like wrapping a "safety rope" around the belt;
• Emergency stop button: Red mushroom-head buttons are installed in the operation room and at the head/tail of the belt; pressing the button cuts off the power immediately, with a response time <0.1 second, enabling more convenient "one-key shutdown";
• Emergency pull cable: Made of steel cable (tensile strength ≥500N), suitable for complex paths such as curves and slopes; pulling the steel cable triggers shutdown, filling the protection blind spots in special terrains (e.g., mountain belts in mines).

V. Overload Protection Devices

Belt overload will cause motor overload and belt stretching deformation. This device equips the belt with overload protection devices from three dimensions: flow, tension, and current, which can detect problems in time and reduce potential safety hazards.

Functions and Characteristics

• Belt scale (flow monitoring): Dynamically weighs the material; when the weight exceeds the limit, it first gives an alarm and then links with the feeder to reduce the feeding amount (closed-loop control), acting like an "electronic scale" for the belt;
• Tension sensor (tension monitoring): Monitors the belt tension in real time; when the tension exceeds the threshold due to overload, it directly shuts down the belt to protect the "skeleton" of the belt;
• Motor overload protector (current monitoring): Monitors the working current of the motor; when the current exceeds 1.2 times the rated current, it automatically cuts off the power supply, featuring low cost and easy maintenance, acting as a "current bodyguard" for the motor.

VI. Anti-Reversal Protection Devices

After the shutdown of an inclined belt (inclination angle >15°), the gravity of materials is likely to cause the belt to reverse, which may lead to minor material backflow or more serious belt stacking and tearing. The anti-reversal protection device can firmly lock the running direction.

Functions and Characteristics

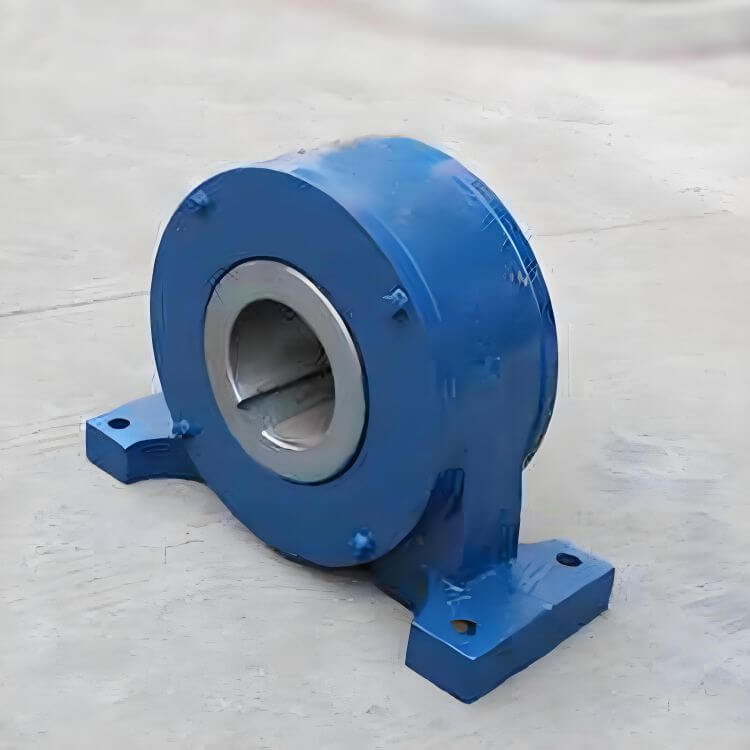

• Ratchet backstop: Pure mechanical structure (ratchet + pawl), no power dependency, with a reliability >99%, suitable for medium and low-speed belts (e.g., underground hoisting belts in mines), acting like a "mechanical lock" for the belt;
• Belt-type backstop: Realizes braking through the friction between the brake belt and the drum, featuring simple structure and low cost, but with slight wear during braking, suitable for light-load belts;
• Hydraulic backstop: Hydraulic drive, with stable braking and small impact force, suitable for high-speed (>2m/s) and heavy-load inclined belts (e.g., ore hoisting belts in ports), acting like a "hydraulic brake" for the belt.

VII. Temperature and Smoke Protection Devices

Faults such as drum bearing jamming and belt slipping will cause overheating due to friction, and even fire. This device provides early fire warning from two dimensions: temperature and smoke.

Functions and Characteristics

• Temperature sensor: Monitors the temperature of the drum surface or bearing; when the temperature exceeds 80℃, it first gives an alarm; if the overheating persists, it shuts down the belt, acting like a "thermometer" for the belt; it uses a high-temperature-resistant probe (temperature resistance >200℃), installed in a contact manner, and is resistant to vibration and dust (suitable for the high-temperature environment of coal conveying belts in power plants);
• Smoke sensor: Captures early smoke generated by friction (before fire breaks out) and links with water spray/dry powder fire extinguishing devices to put out the "flame" in advance; it adopts a photoelectric design with high sensitivity (triggered by smoke of 0.1mg/m³) and is installed above the belt, acting like a "smoke alarm" for the belt.

VIII. Material Blockage Protection Devices

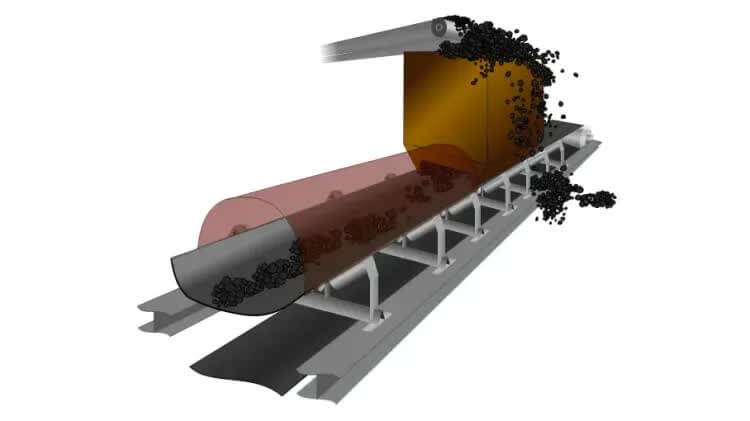

Hoppers and chutes are the "throats" of the belt. When materials are highly viscous or have uneven particle sizes, blockage is likely to occur, leading to belt overload and deviation. The material blockage protection device can clear the blockage in time.

Functions and Characteristics

• Rotary blockage switch: The rotating blade stops rotating when blocked by materials, triggering the switch; it is mechanical, direct, and low-cost, suitable for dry bulk materials (e.g., grain conveying belts);
• Capacitive blockage switch: Detects blockage through the difference in dielectric constant between materials and air; it is non-contact, suitable for viscous materials (e.g., cement and clay conveying belts), acting like an "invisible detector" for the belt;
• Level sensor: Uses ultrasonic waves or radar to detect the material height and output continuous signals to provide early warning of blockage trends (e.g., "alarm when the material level reaches 80%"), which is more intelligent.

IX. Position Limit Protection Device (Heavy-Duty Limit Switch)

Heavy-duty moving components in the belt system (e.g., tensioning frame, telescopic head, heavy-duty idler group) may cause structural collision if they move beyond the limit position (e.g., tensioning frame hitting the wall, telescopic head jamming).

Functions and Characteristics

• Core Function: When the component moves to the limit position, the first-level audible and visual alarm is activated (prompting intervention), and the second-level emergency shutdown is enforced (cutting off power) to avoid "hard collision" and equipment damage;
• Structural Characteristics: Heavy-duty design (able to withstand impact force ≥1000N), contact life ≥100,000 times, protection class IP65 (dustproof and waterproof), adapting to the vibration and dust environment of the belt; manual reset is required after shutdown to prevent misoperation and ensure safety.

X. Auxiliary Power Supply Protection Device (On-Site Power Generation Device)

Belts in remote areas (e.g., mine mining areas, oilfield heat-tracing oil conveying belts) have no external power supply, so IoT sensors and emergency lighting are prone to failure due to power outage. The auxiliary power supply protection device can convert the belt's kinetic energy into electrical energy.

Functions and Characteristics

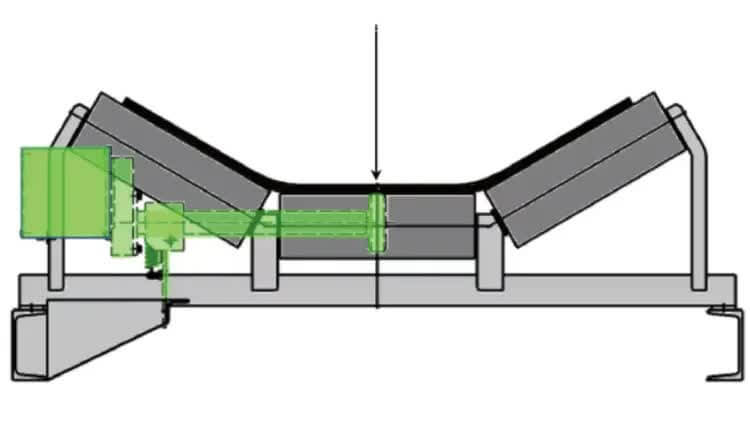

• Kinetic energy capture: When the belt is running, the driven drum rotates to drive a micro permanent magnet generator (power 5-50W), converting mechanical energy into electrical energy;
• Energy storage and power supply: Equipped with a lithium battery/super capacitor, it provides continuous power supply through a voltage stabilization circuit to ensure that IoT sensors and emergency lights "never power off";
• Structural Characteristics: Integrating a generator, energy storage, and voltage stabilization circuit, it is installed at the shaft end of the driven drum without affecting the belt operation, with a power generation efficiency ≥60%, suitable for belt speeds of 0.5-5m/s.

Maintenance Points

• Regularly clean sensors (e.g., photoelectric slipping sensors, smoke sensors) to avoid misjudgment caused by dust blocking;
• Check the lubrication and wear conditions of mechanical devices (e.g., backstops, self-aligning idlers, heavy-duty limit switches) to ensure that moving parts are flexible; the triggering position of heavy-duty limit switches should be calibrated quarterly;
• Test emergency shutdown devices (pull rope switches, emergency stop buttons, emergency pull cables) monthly to ensure that the power can be cut off instantly after triggering; check the cable tension and anti-corrosion coating of emergency pull cables;
• For on-site power generation devices, check the battery level of the energy storage module and the lubrication condition of the generator connecting shaft monthly, and test the power supply stability every six months to prevent sensor failure due to power outage.

Appendix: Summary Table of Conveyor Belt Safety Protection Devices (Quick Reference Version)
