1. Product Overview

ZOOMRY CEMA D self-aligning return idlers are heavy-duty return side components with automatic belt tracking correction via pivot-mounted frame and guide rollers. Built to CEMA D standards for mining and bulk material handling, these self-aligning return idlers detect empty belt drift on the return side and steer the belt back to center — preventing edge wear, structure contact, and carryback spillage without sensors or external power.

Compared to CEMA E self-aligning return idlers for extra heavy-duty 96-inch belts, the CEMA D version covers the heavy-duty 24–72 inch range with 4-inch and 5-inch diameter rollers — the standard size for cement and aggregate conveyor return sides.

---

2. Why Return Side Belt Tracking Matters

The return side of a heavy-duty conveyor presents unique tracking challenges. The empty belt travels faster and under lower tension than the loaded carrying side, making it more susceptible to drift from wind, idler misalignment, and uneven tension. When the return belt contacts the conveyor stringer, it causes edge fraying, belt cover damage, and fire risk from friction in coal handling environments.

CEMA D self-aligning return idlers address this with a pivot-mounted flat return frame and side guide rollers. When the return belt drifts, it contacts the guide roller — applying force that pivots the frame and redirects the belt back to center. This fully mechanical correction reduces return-side edge wear by up to 50% and eliminates belt-to-structure contact that causes friction heating and structural damage. For reversible conveyors, guide rollers function in both directions, maintaining alignment regardless of belt travel direction.

---

3. Key Features

Automatic Return Belt Tracking — Pivot-mounted flat frame with side guide rollers continuously corrects return belt misalignment without power or sensors — essential for unmanned conveyor stations.

CEMA D Heavy-Duty Rating — Reinforced pivot bearings withstand continuous corrective motion on high-speed return belts with 4-inch and 5-inch diameter rollers for belt widths up to 72 inches.

Reversible Conveyor Compatible — Guide rollers function in both belt directions, maintaining alignment during direction changes in port terminal stacking and reclaiming operations.

Advanced Labyrinth Sealing — Multi-stage seals protect pivot bearings and roller bearings from dust and carryback debris, maintaining rotational resistance ≤2N.

Structure Protection — Prevents return belt contact with conveyor stringers, eliminating structural wear and reducing fire risk in coal and biomass applications.

---

4. Application Scenarios

Long Overland Conveyors — Return side tracking over several kilometers in mining operations where wind and thermal expansion cause return belt drift. Self-aligning return idlers at regular intervals prevent progressive misalignment.

Reversible Conveyors — Stacker and tripper belts in port and stockyard applications where belt direction changes cause tracking instability on both sides.

Coal & Combustible Material — Return belt contact with structure creates friction heating — a fire risk in coal handling systems. Self-aligning return idlers prevent belt-to-structure contact.

---

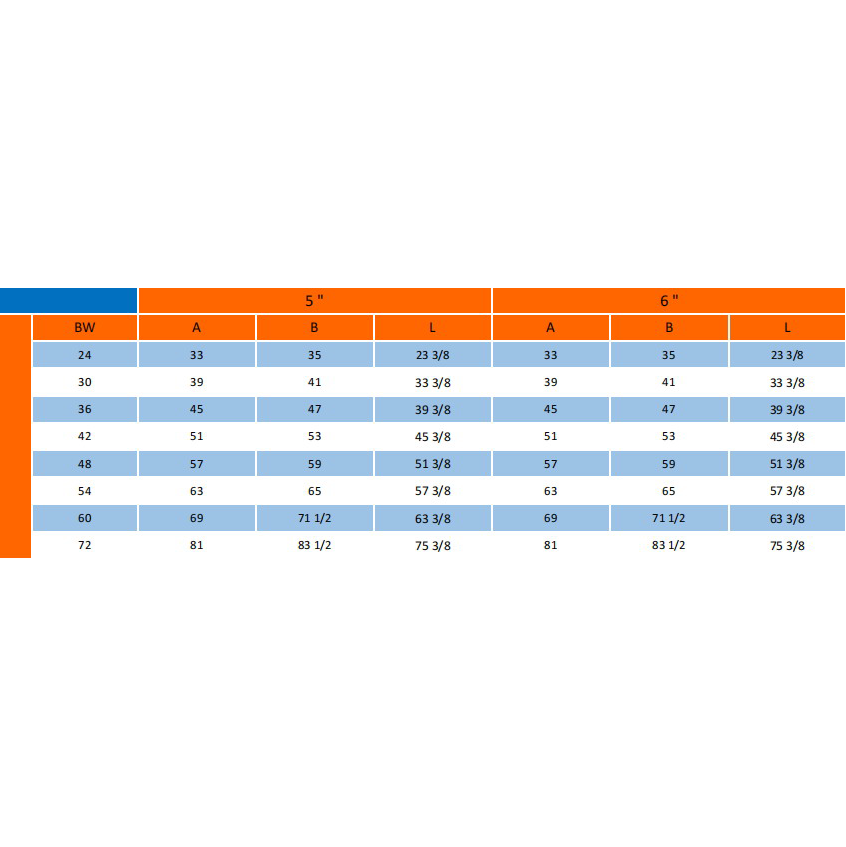

5. Dimensions – CEMA D Self-Aligning Return

ZOOMRY CEMA D self-aligning return idlers use a simplified flat return roller design with pivot-mounted frame and guide rollers. Available in 5-inch and 6-inch roller diameters for belt widths from 24 to 72 inches:

BW	5" Roller			6" Roller
	A	B	L	A	B	L
24	33	35	23 3/8	33	35	23 3/8
30	39	41	33 3/8	39	41	33 3/8
36	45	47	39 3/8	45	47	39 3/8
42	51	53	45 3/8	51	53	45 3/8
48	57	59	51 3/8	57	59	51 3/8
54	63	65	57 3/8	63	65	57 3/8
60	69	71 1/2	63 3/8	69	71 1/2	63 3/8
72	81	83 1/2	75 3/8	81	83 1/2	75 3/8

Self-aligning return idlers use the same A/B/L frame dimensions as standard return idlers — the difference is the pivot-mounted frame and guide roller mechanism.

---
