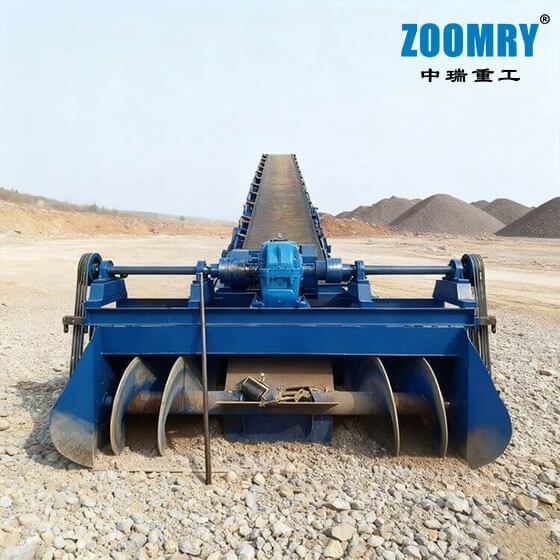

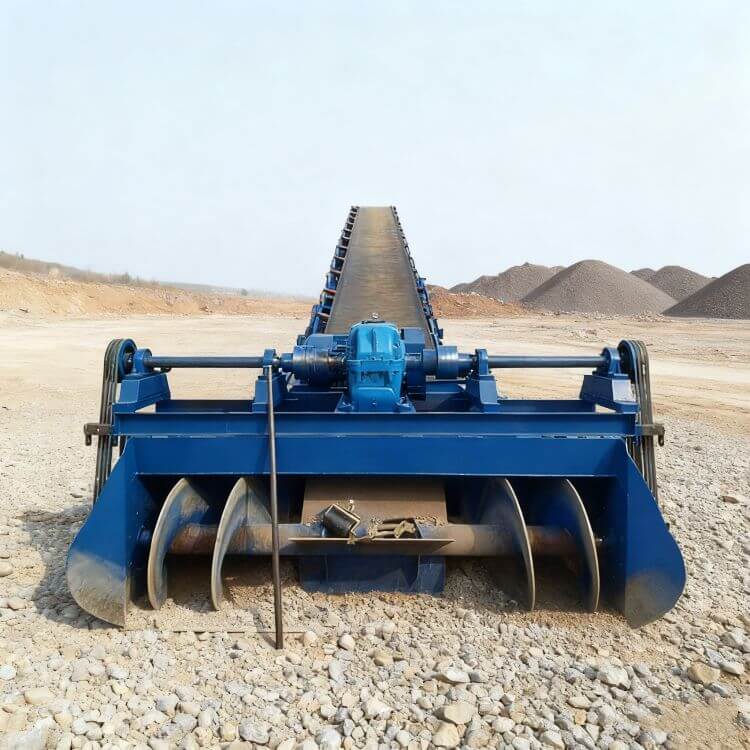

The ZOOMRY Spiral Scraper Conveyor is a versatile core equipment designed for global bulk material handling scenarios, covering a full capacity range of 100-2000 tph, adaptable to operations from small-scale sites to large-scale bulk material processing. Centered on a professional spiral scraper structure, it precisely matches the characteristics of various bulk materials such as coal, gravel, grain, and ore, combining the wear-resistant and efficient advantages of spiral scraper conveyors with the flexible operation features of scraper loading machines. Equipped with optional rubber or steel tracked chassis and dual wireless remote and local control modes, it is widely applicable to industries such as mining, construction materials, and storage, providing global clients with an integrated bulk material handling solution of “efficient scraping, stable conveying, and multi-scenario adaptability.” Backed by stringent quality control and international compliance certifications, it is a reliable choice in the field of bulk material conveying.
Core Advantages of the Spiral Scraper Conveyor
The core competitiveness of the ZOOMRY Spiral Scraper Conveyor lies in three key dimensions: “full capacity coverage, multi-scenario adaptability, and low-loss operations.” Addressing the critical pain points in bulk material handling—such as “diverse material types, variable operating environments, and significant scale differences”—it resolves the issues of traditional scraper equipment, including “fixed capacity, poor material adaptability, and complex operation,” through structural optimization and functional integration, while meeting clients’ dual expectations for equipment versatility and reliability.
The spiral scraper system adopts a composite design of “alloy teeth + wear-resistant blades.” The 6-8 mm thick blades are inlaid with high-strength alloy teeth on the outer side, offering 1.2 times higher wear resistance than ordinary carbon steel blades, capable of withstanding long-term impact and wear from hard bulk materials like gravel and ore. The spiral outer diameter ranges from 500-800 mm, paired with a scraping width of 2-3.2 m and a material pickup width of 2.4-3.6 m, allowing flexible adjustment of scraping efficiency based on material pile density: for lightweight bulk materials like grain, the large-diameter spiral enables high-capacity output; for medium-heavy materials like coal, the medium-to-small diameter spiral with alloy teeth allows precise speed control to avoid overloading; for blocky bulk materials, the alloy teeth can break up slight caking, ensuring continuous scraping without clogging. Additionally, the spiral system features an “adaptive pressure adjustment” function, automatically adjusting speed and scraping depth when encountering oversized materials to prevent component damage from hard impacts, while feeding material resistance data to the HMI screen via sensors to assist operators in optimizing operational parameters and reducing failure risks.
The dual-configuration tracked chassis ensures adaptability to different terrains: the rubber tracks, model 4009068 with an effective length of 2.9 m, are made of high-elasticity wear-resistant material with a ground pressure of only 0.07 MPa, suitable for soft ground operations such as mine tailings or grain storage yards, preventing equipment entrapment while minimizing damage to ground infrastructure. The steel tracks, model 40013554 with an effective length of 3.6 m, have carburized and quenched track plates with a hardness of HRC58-62, improving wear resistance by 80%, ideal for rough, hard surfaces like gravel yards in construction material plants or mining areas, resisting scratches from sharp materials and extending chassis lifespan. Both chassis types are driven by hydraulic motors paired with planetary reducers, delivering an output torque of up to 3500 N·m, enabling smooth steering and movement even under full load. The standard chassis outer width is 2.3 m, with customizable widening options to further enhance stability on complex terrains.
The dual-mode control system is fully adapted to dusty and rainy outdoor environments: the stainless steel rainproof control cabinet, made of 304 stainless steel with an IP65 protection rating, effectively resists water and dust intrusion, with internal components sourced from internationally renowned brands to ensure long-term stable operation. The wireless remote control handle, with an effective range of 100 meters, supports full equipment functionality, including one-touch start/stop, spiral speed adjustment, chassis movement, and Conveyor Belt start/stop, allowing operators to monitor operations from a safe distance without direct contact with bulk materials, significantly enhancing operational safety and convenience. Additionally, the control system features an “operation memory” function, capable of storing three sets of commonly used operational parameters, such as spiral speed and conveyor belt speed, enabling one-touch retrieval when switching material types, eliminating the need for repeated adjustments and improving operational efficiency. The system also includes multiple safety protections: in emergencies, both the remote handle and control cabinet have emergency stop buttons that immediately cut off all power; the spiral and conveyor belt have overload protection, automatically stopping and alarming when the load exceeds the rated value; the control cabinet includes built-in temperature and humidity sensors, triggering audible and visual alarms when environmental parameters exceed normal ranges (temperature -20℃ to 60℃, humidity <90%), alerting operators to take timely protective measures.
Core Components of the Spiral Scraper Conveyor
The long-term reliability of the ZOOMRY Spiral Scraper Conveyor stems from the targeted optimization of core components for “wear resistance, adaptability, and ease of maintenance.” Each component undergoes multi-condition simulation testing at ZOOMRY’s quality testing center, ensuring compliance with the long-term operational needs of various bulk material types and environments.
The drive unit of the spiral scraper system employs high-power motors, with power configured based on capacity gradients: 22-37 kW for low-capacity operations (100-500 tph), 45-55 kW for medium-capacity operations (500-1200 tph), and 75 kW for high-capacity operations (1200-2000 tph). With a motor efficiency exceeding 95.5%, it offers superior energy savings compared to standard motors, and its IP55 protection rating ensures resistance to dust and moisture in outdoor environments. The accompanying reducer offers three models: ZQ350 dual output, ZQ400 dual output, and ZLY250 hard-tooth surface dual output, all with transmission efficiencies above 97%. The hard-tooth surface reducer provides 50% higher load-bearing capacity than standard models, capable of withstanding instantaneous impact loads during spiral scraping, extending the overall lifespan of the drive system. The spiral blades and teeth adopt a modular design, allowing individual replacement of worn parts without dismantling the entire spiral shaft, reducing maintenance time to within 2 hours. The teeth are bolt-fixed, requiring simple tools for replacement, enabling clients to perform maintenance without professional engineers.
The conveyor belt system covers a bandwidth range of 800-1600 mm, flexibly matched to capacity and material block size: 800-1000 mm bandwidth for small-to-medium capacity operations (100-800 tph), and 1200-1600 mm for high-capacity operations (800-2000 tph). The conveyor belt is made of nylon-core anti-slip rubber with a longitudinal tensile strength of 1600 N/mm, featuring an 8 mm deep diamond-patterned surface treatment that enhances anti-slip performance by 40%, effectively preventing material slippage during transport, especially for wet coal or sticky gravel. The conveyor belt is driven by a 15-30 kW electric drum, eliminating the need for additional motor and reducer installations, offering a compact structure and easy maintenance. The electric drum has an IP54 protection rating with built-in overheat protection, automatically stopping at temperatures above 120℃ to prevent burnout risks. The conveyor belt’s fixed discharge height of 4 meters matches the feed height of common trucks and conveyors, ensuring rapid material transfer with minimal spillage loss.
The hydraulic and chassis system’s core is an 11-18.5 kW hydraulic pump station, flexibly matched to chassis type and spiral specifications: 11 kW for rubber tracked chassis, and 15-18.5 kW for steel tracked chassis and large spiral specifications. The pump station has a 200 L oil tank equipped with dual filtration devices with a filtration accuracy of 10 μm, achieving a hydraulic oil cleanliness level of NAS 8, reducing wear on hydraulic components and maintaining an annual system failure rate below 0.5%. The hydraulic pipelines use high-pressure hoses with a working pressure of 30 MPa and stainless steel connectors, offering excellent corrosion resistance suitable for dusty and salt-spray environments. The chassis travel system, linked with the hydraulic motor, supports stepless speed regulation with a travel speed of 0-3 km/h, adjustable to operational needs. The chassis also features hydraulic shock absorbers, mitigating jolts on uneven terrain, reducing material spillage, and protecting core components from vibration damage.
Convenient Transport and Efficient Installation: Reducing Global Project Deployment Challenges
Addressing the pain points of global clients, such as “complex cross-border equipment transport and long on-site installation cycles,” the ZOOMRY Spiral Scraper Conveyor adopts a “modular disassembly + high pre-assembly ratio” design, ensuring equipment performance while significantly reducing transport and installation challenges, enabling rapid project commissioning.
The modular transport design disassembles the equipment into four standard units: spiral scraper module, conveyor belt module, chassis module, and control module, each sized to fit a 40-foot high-cube container (12.03 m long × 2.35 m wide × 2.69 m high). The spiral module folds hydraulically to a height below 2.5 m and weighs under 18 tons; the conveyor belt module splits into 2-3 segments, each no longer than 6 m and weighing no more than 10 tons; the chassis and control modules are integrated into waterproof enclosures, requiring no special transport permits. Compared to traditional integrated scraper conveyors, this design significantly reduces cross-border logistics costs, and core components are factory-packaged with anti-rust and waterproof materials to prevent damage from jolts or moisture during transport, accommodating global logistics conditions.
The high pre-assembly ratio ensures rapid on-site commissioning: the equipment is 85% pre-assembled at the factory, including precise spiral-to-motor connections, conveyor belt installation and tuning, initial hydraulic pipeline connections, and control system parameter calibration. It undergoes 80 hours of full-load testing, simulating various capacity scenarios to ensure fault-free on-site installation. On-site installation requires only three core steps: first, modular unit assembly, connecting the spiral module to the chassis and the conveyor belt module to the frame with high-strength bolts, completed by two people in 2 hours; second, final connection of hydraulic pipelines and electrical plugs using quick leak-free connectors, taking no more than 1 hour; third, no-load testing and parameter fine-tuning, checking spiral rotation, chassis travel, and remote control functions, completed by a skilled team in one day for full commissioning. ZOOMRY provides a technical manual with step-by-step operation guides, highlighting special considerations for heavy equipment installation, such as bolt tightening torque and hydraulic system venting procedures, along with 24-hour online technical support via video guidance to assist clients in resolving installation issues, enabling deployment without a professional installation team.
Stable and Reliable Quality
As a versatile bulk material equipment for global markets, the ZOOMRY Spiral Scraper Conveyor ensures compliant use in various countries and regions through multiple international certifications and comprehensive quality control, guaranteeing long-term reliability across diverse operational scenarios.
In terms of international certifications, the equipment has passed EU CE certification, covering the Machinery Directive (2006/42/EC) and Electromagnetic Compatibility Directive (2014/30/EU), completing 12 specialized tests for bulk material handling equipment safety requirements, including structural load-bearing strength, emergency braking response, electrical safety protection, and electromagnetic compatibility, enabling direct entry into the European Economic Area (EEA) market. It also holds EAC certification from the Russian Customs Union, meeting the operational requirements of “low-temperature, high-dust” environments in CIS countries, with technical documentation provided in multiple languages, including operational and maintenance guidelines for different bulk materials to facilitate local regulatory reviews. Additionally, the equipment complies with ISO 9001 quality management and ISO 14001 environmental management systems, with a fully traceable production process from raw material intake to finished product delivery, with detailed quality records for each step to ensure consistency in mass production.
In quality control, ZOOMRY’s in-house quality testing center is equipped with a chemical laboratory, hardness laboratory, spiral performance testing laboratory, and hydraulic system high-pressure testing laboratory, featuring over 60 professional testing devices. Core components undergo rigorous testing: spiral blades and alloy teeth are subjected to thousands of hard gravel impact tests (50 kg per block) and 500-hour wear tests to ensure no significant wear or deformation, suitable for hard bulk materials like gravel and ore; the conveyor belt undergoes 100-hour full-load tensile testing and extreme temperature and humidity (-30℃ to 60℃) weathering tests to ensure no breakage or aging, adaptable to various climatic conditions; the hydraulic system undergoes 72-hour sealing tests (30 MPa working pressure) to ensure no leaks, guaranteeing long-term stable operation; the control system undergoes 100-hour rain tests (verifying IP65 protection) and electromagnetic interference tests to ensure normal functionality without fault alarms. Each conveyor undergoes multiple rigorous tests before delivery, including capacity switching tests, tracked chassis climbing tests (slope ≤15°), 100-meter wireless remote control range tests, and low-temperature startup tests (-30℃), with delivery only upon meeting standards, ensuring reliable operation across global multi-scenario applications.
Technical Parameters
| Item | Specification Parameters |
|---|---|
| Equipment Type | Spiral Scraper Conveyor (Universal Type) |
| Capacity Range (tph) | 100-2000 |
| Applicable Material Types | Coal, gravel, grain, ore, aggregates, etc. |
| Spiral Outer Diameter (mm) | 500-800 |
| Spiral Scraping Width (m) | 2-3.2 |
| Material Pickup Width (m) | 2.4-3.6 |
| Blade/Teeth Configuration | 6-8 mm blades + alloy teeth |
| Motor Power (kW) | 22-75 |
| Reducer Model | ZQ350 dual output / ZQ400 dual output / ZLY250 hard-tooth surface dual output |
| Conveyor Belt Width (mm) | 800-1600 |
| Conveyor Belt Length (m) | 12-15 |
| Conveyor Belt Power (kW) | 15-30 (electric drum) |
| Conveyor Belt Material | Nylon-core anti-slip rubber belt |
| Discharge Height (m) | 4 |
| Hydraulic Pump Station Motor Power (kW) | 11-18.5 |
| Tracked Chassis | Rubber tracks (4009068, effective length 2.9 m); Steel tracks (40013554, effective length 3.6 m), chassis outer width 2.3 m (supports widening) |
| Control System | Stainless steel rainproof control cabinet, 100 m wireless remote + local control |
| Protection Rating | IP65 (control cabinet), IP55 (motor) |
| Applicable Ambient Temperature (℃) | -30\~60 (resistant to extreme climates) |
| Optional Configurations | Spiral blade wear-resistant coating, conveyor belt Rain Cover, material level sensor, chassis widening kit |
Why Choose ZOOMRY
Comprehensive Optimization from Adaptability to Maintenance
Choosing the ZOOMRY Spiral Scraper Conveyor provides significant value to clients across three dimensions: adaptability, efficiency, and maintenance. In terms of adaptability, the equipment covers a full capacity range of 100-2000 tph, eliminating the need for separate equipment for different capacities, reducing initial investment. The dual rubber/steel tracked chassis adapts to soft and hard terrains, requiring no additional site modifications and lowering site preparation costs. The multi-material compatibility handles coal, gravel, grain, and other bulk materials, preventing equipment idle time and enhancing return on investment.
In terms of efficiency, the integrated “spiral scraping + conveyor belt” design reduces material transfer stages, significantly improving operational efficiency compared to traditional handling methods. The 100-meter wireless remote control reduces manual intervention, with a single unit replacing multiple operators, lowering labor costs. The control system’s “operation memory” function shortens material changeover debugging time, minimizing operational interruptions and enhancing overall continuity.
In maintenance cost control, the modular component and individual replacement design significantly reduces maintenance time. High-wear-resistant materials (e.g., alloy teeth, nylon-core conveyor belt) extend component replacement cycles, reducing maintenance frequency and costs. The equipment’s low failure rate (annual failure rate <0.8%) minimizes downtime losses, ensuring long-term stable operations and further controlling comprehensive maintenance costs.
Global Client Support
ZOOMRY has established a comprehensive service system of “technical support + spare parts assurance + specialized training” tailored to global client needs, ensuring long-term stable equipment operation. For technical support, multi-language technical documentation is provided, including operation manuals, maintenance guides, and troubleshooting manuals, covering parameter settings for different bulk materials, tracked chassis maintenance points, and control system fault handling, accompanied by clear diagrams and operation videos for easy client understanding. 24-hour online technical support (email: oversea@zoomry.cn; phone: +86-13164016717) offers rapid engineer responses, with video guidance to resolve equipment debugging and troubleshooting issues. Assigned engineers have over 5 years of bulk material equipment service experience, familiar with equipment pain points in global multi-scenario applications.
For spare parts assurance, ZOOMRY leverages an efficient global supply chain collaboration system, pre-stocking common spare parts such as spiral blades, alloy teeth, conveyor belts, and hydraulic filters. Upon client request, parts are shipped quickly via international logistics, with delivery cycles flexibly controlled based on the client’s region. For key clients, a “spare parts pre-planning service” is offered, developing procurement and storage plans based on equipment operation frequency and wear part replacement cycles, using bulk shipments or phased restocking to avoid downtime due to part shortages.
For specialized training, ZOOMRY offers equipment operation and maintenance training for global client teams, covering spiral scraping parameter optimization, tracked chassis maintenance, and emergency fault handling. Through a combination of theoretical and practical training, clients’ teams master key equipment operation and maintenance points, enhancing operational standardization and maintenance professionalism to support efficient client operations.
