1. Product Features of Jump Conveyor

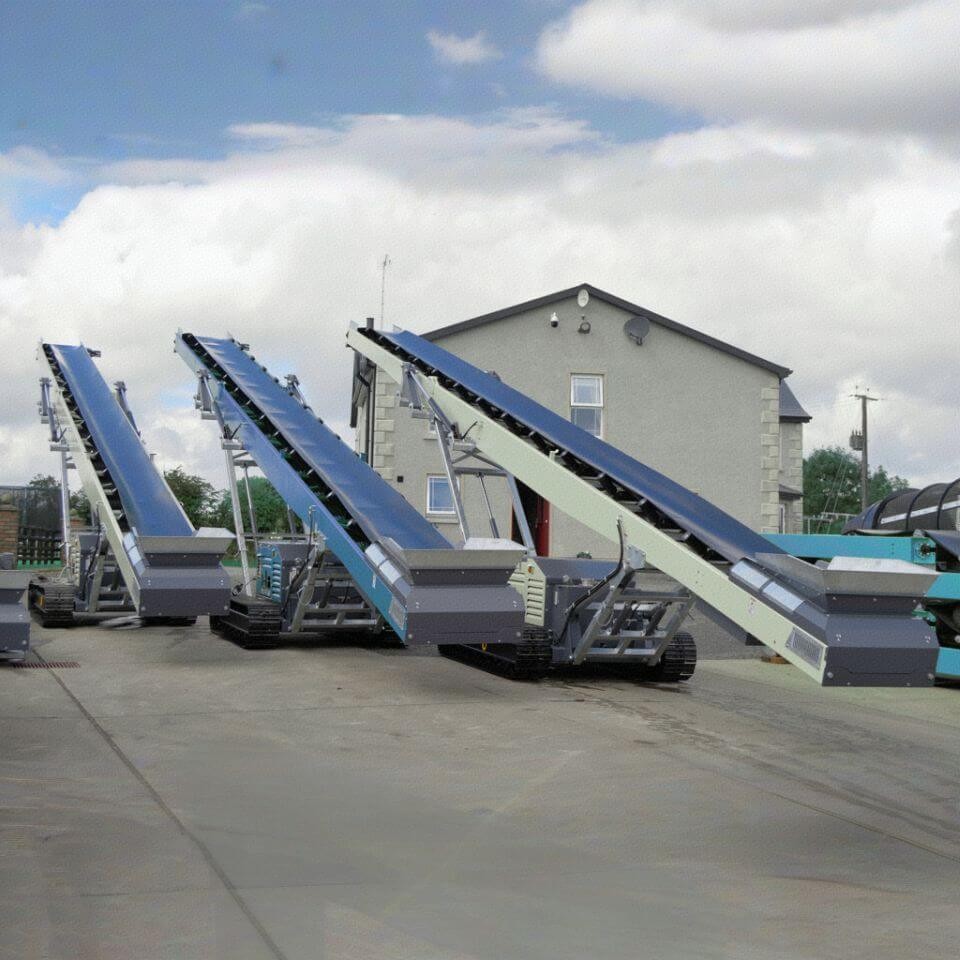

The ZOOMRY jump conveyor combines rapid mobility with modular expandability for mining and aggregate quarry applications where frequent workstation changes are required.
Intelligent Positioning Platform
Front-wheel system enables 360° omnidirectional steering, while the rear support frame forms a stable triangular structure. A proprietary hydraulic balancing module completes workstation conversion within 5 minutes, improving relocation efficiency by 300% compared to traditional belt conveyor equipment.
Modular Expansion System
Standardized interface design supports flexible system extension — conveyor units freely combined from 15–30 m with optional diesel-electric dual power modules and plug-and-play control system expansion. Single module maximum load reaches 3 tons/meter. For feeding applications, the system integrates seamlessly with hopper feeders for controlled material intake.
Terrain Conquest Technology

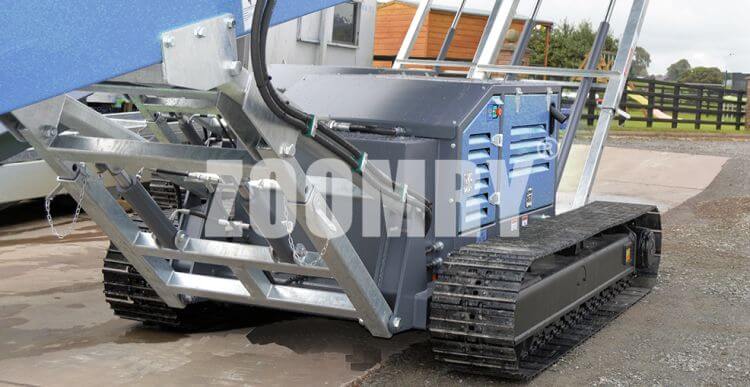

The tracked jump conveyor features multi-stage hydraulic suspension; the wheeled version is equipped with all-terrain tires. An intelligent tilt compensation system (±3° auto-correction) maintains 99.7% belt level precision on 18° slopes, conquering complex mining terrain where fixed conveyors are impractical. The tracked radial stacker configuration offers additional mobility for soft ground conditions.
Smart Docking System
A 0.75 m ultra-low hopper integrates radar sensing to auto-track loading equipment trajectory, with 4–8 m hydraulic height adjustment and anti-overflow intelligent cutoff protection. Compatible with all construction machinery interfaces including truck unloader systems.
Rapid Deployment Solution
Folded transport dimensions of 12 × 2.4 × 2.8 m enable standard truck transport without special permits. On-site deployment completes in ≤8 minutes with single-operator configuration change and foundation-free plug-and-play operation.
Cluster Control System
Industrial CAN bus enables multi-machine coordination supporting up to 50-unit network operation within a 500 m radius. Smart dynamic capacity allocation and automatic task takeover for failed units ensure uninterrupted material flow across large port and terminal or mine sites.
2. Application Solutions
Mine Haulage Coordination
During dynamic transfer from mining zones to crushing stations, the jump conveyor adapts to complex pit terrain, solving traditional haul truck inefficiency and high road maintenance costs while achieving continuous material supply. For iron ore and steel raw material operations, this reduces truck fleet dependency by up to 60%.
Aggregate Precision Distribution
For aggregate yard to mixing plant transfer, the modular system expands according to output needs. It enables 8 m high-precision stacking in confined spaces, preventing material segregation while ensuring concrete mix consistency in aggregate and quarry operations.
Port Smart Handling
In tidal berth operations, the jump conveyor's hydraulic leveling system overcomes vessel sway, enabling direct ship-to-yard transfer. Handling efficiency at 550 t/h saves 40% time compared to crane operations — ideal for coal handling terminals and bulk cargo ports.
Emergency Logistics Channel
For disaster site material transfer, foundation-free rapid deployment enables immediate response. The diesel version supports 72-hour continuous operation; the electric version connects to generators, constructing temporary material handling lifelines.
3. Performance Parameters
| Model | Capacity (t/h) | Working Span (m) | Drive Power (kW) | Gradeability | Stack Height (m) |
|---|---|---|---|---|---|
| ZR65D | 200 | 15 / 20 / 25 | 18.5 | 18° | 6.5 / 8.0 |
| ZR80D | 300 | 15 / 20 / 25 | 22 | 18° | 6.5 / 8.0 |
| ZR100D | 400 | 15 / 20 / 25 | 30 | 18° | 6.5 / 8.0 |
| ZR120D | 550 | 15 / 20 / 25 | 37 | 18° | 6.5 / 8.0 |
Technical Notes: Tracked jump conveyor compatible with 22° slope upgrade kit. Electric version equipped with intelligent soft-start system (start current ≤2× rated). Full series certified to ISO 9001/14001 standards.
4. Partnership Value Assurance
Manufacturing Quality
Main structure uses special channel steel (section modulus ≥980 cm⁴), with critical welds complying with AWS D1.1 standard and a triple stress-relief process. The whole machine passes 200,000-cycle fatigue testing, ensuring 10-year service life. All conveyor rollers and structural components are manufactured in-house for consistent quality control.
Full-Process Timeliness Commitment
| Phase | ZOOMRY Standard | Industry Benchmark |
|---|---|---|
| Solution Design | 8-hour response | 24–48 hours |
| Machine Delivery | 20-day completion | 30–45 days |
| Site Commissioning | 24-hour readiness | 3–5 days |
| Parts Supply | 72-hour global dispatch | 7–15 days |
Scenario-Specific Service Matrix
Mining Task Force — Provides tunnel conveyance solutions for underground-to-surface material transfer.
Construction Customization Group — Develops urban noise-dust reduction modules for city-proximate operations.
Port Technical Unit — Equips anti-salt-spray corrosion packages for salt and marine environments.
24/7 Emergency Team — Disaster preparedness standby support with rapid mobilization capability.
