Tracked conveyor

Parameter	Value
Throughput & Belt Width	Up to 1,500 t/h; 800 – 2,000 mm (custom)
Control & Transport	Remote radio control; Folding head/tail – road legal
Optional Equipment	Dust suppression, belt scale, wear lining, telemetry
Applications	Mining, Port, Quarry, Power, Fertilizer

ZOOMRY tracked conveyor is a mobile bulk material handling solution designed for high-capacity stacking in mining, port terminals, aggregate quarries, and stockpile yards. It combines robust track mobility, remote control automation, and a folding conveyor structure for easy transport and rapid site deployment — making it the preferred choice over wheeled portable conveyors on soft or uneven terrain.

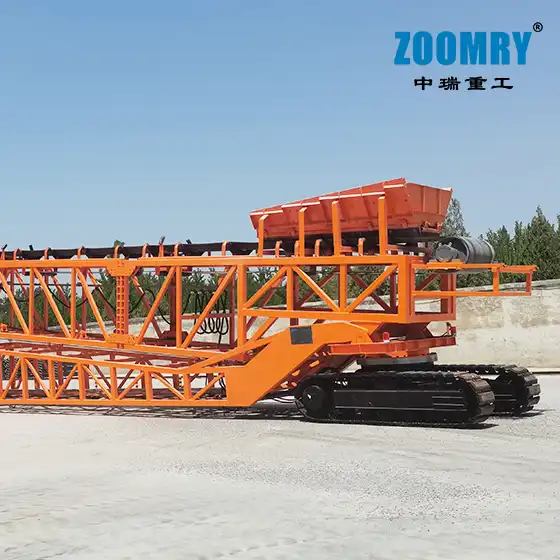

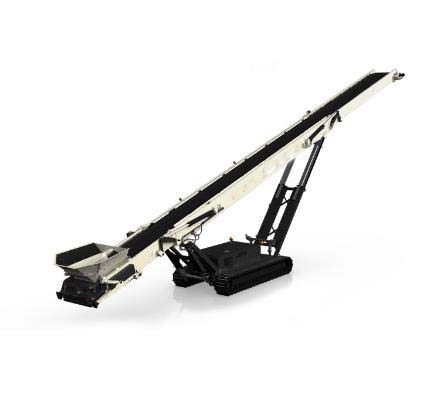

ZOOMRY Tracked Conveyor — Crawler-Mounted Mobile Stacker for High-Capacity Stockpiling

Key Technical Features

High capacity — handles up to 1,500 tons per hour (t/h), suitable for coal, ore, aggregates, fertilizer, and grain.
Remote control & full automation — single-operator wireless control reduces labor cost and increases safety.
Heavy-duty crawler undercarriage — provides excellent stability on uneven or soft ground, with hydraulic drive for smooth movement.
Effective belt cleaning system — primary and secondary Belt Cleaners prevent carryback and material buildup.
Compact and sturdy structure — built with high-strength steel, designed for 24/7 operation in harsh environments.
Automatic height adjustment — hydraulic lifting system allows precise control of stacking height and angle.
Folding head and tail sections — reduces transport dimensions; ready for road travel without disassembly.

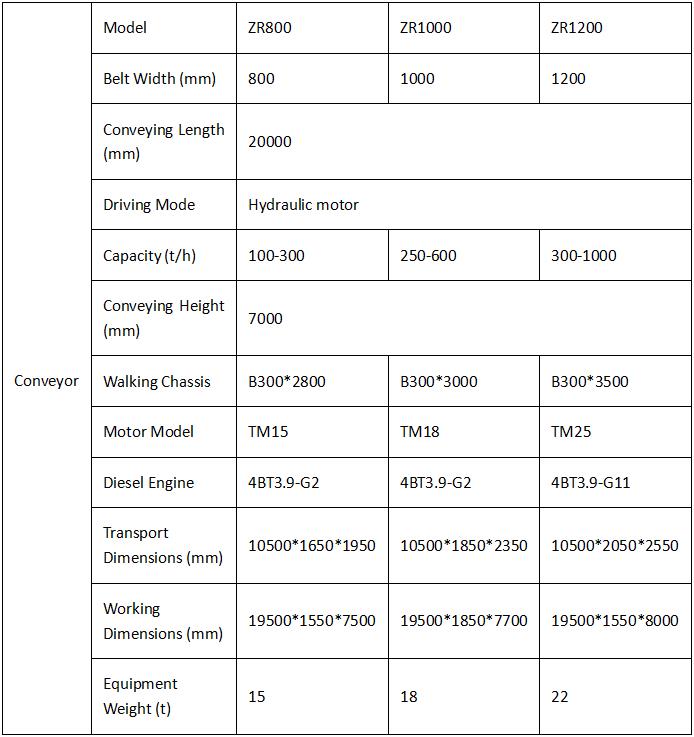

Specifications

Type	Model	ZR800	ZR1000	ZR1200
Type	Conveyor	Belt Width (mm)	800	1000	1200
Conveyor	Conveying Length (mm)	20,000	20,000	20,000
Conveyor	Driving Mode	Hydraulic motor
Conveyor	Capacity (t/h)	100 – 300	250 – 600	300 – 1,000
Conveyor	Conveying Height (mm)	7,000
Conveyor	Walking Chassis	B300×2,800	B300×3,000	B300×3,500
Conveyor	Motor Model	TM15	TM18	TM25
Conveyor	Diesel Engine	4BT3.9-G2		4BT3.9-G11
Conveyor	Transport Dimensions (mm)	10,500×1,650×1,950	10,500×1,850×2,350	10,500×2,050×2,550
Conveyor	Working Dimensions (mm)	19,500×1,550×7,500	19,500×1,850×7,700	19,500×1,550×8,000
Conveyor	Equipment Weight (t)	15	18	22

ZOOMRY tracked conveyor working diagram and dimensions

Applications

Mining: stockpiling iron ore, copper, coal, limestone, and overburden.
Ports & Terminals: loading/unloading vessels, creating temporary stockpiles.
Aggregate & Quarry: stacking sand, gravel, crushed stone, and recycled materials.
Cement & Power Plants: feeding clinker, gypsum, fly ash, and coal.
Agriculture & Fertilizer: stacking grain, soybeans, potash, and phosphate.

Optional Features & Customization

Dust suppression system — water sprays or dry fog for environmental compliance.
Belt scale & radar level sensor — real-time monitoring of tonnage and stockpile volume.
Wear lining — ceramic or AR400 steel liners for abrasive materials.
Remote diagnostic and telemetry — predictive maintenance alerts and performance tracking.
Different belt widths — available from 800mm to 2000mm, tailored to your throughput.
Power options — diesel engine, electric motor, or hybrid drive.

Why Choose This Tracked Conveyor?

1,500 t/h capacity — maximizes productivity with minimal downtime.
Remote controlled — one operator can manage multiple machines safely.
Folding sections — no permits required for highway transport.
Automatic height adjustment — reduces segregation and dust.
Robust track system — moves easily on mud, sand, or rough terrain.
Low maintenance — sealed bearings, easy access grease points, and modular design.
