1. Product Overview
ZOOMRY CEMA B rubber disc return idlers feature alternating rubber discs mounted along the roller length for self-cleaning return side operation on light-duty conveyors. Engineered to CEMA B standards for mining and bulk material handling conveyors up to 48-inch belt width, these return idlers prevent sticky material buildup on the return roller surface. As the roller rotates, the rubber discs shed accumulated carryback — maintaining a consistent roller diameter and preventing the irregular wear that causes belt mistracking. Available with 4-inch and 5-inch diameter rollers and labyrinth seals.
Rubber disc return idlers are the preferred solution for light-duty conveyors handling sticky or hygroscopic materials — coal, clay, overburden, and wet sand — where standard flat return rollers accumulate material that hardens into uneven deposits. These deposits change the effective roller diameter, causing the return belt to track erratically. The rubber disc design eliminates this problem without water spray or manual cleaning.
2. How Rubber Disc Self-Cleaning Works
On the return side of a belt conveyor, fine particles, moisture, and dust inevitably migrate to the return side through belt edge gaps and splice points. For most dry, free-flowing materials, standard flat return rollers handle this without issue. But for sticky materials, each revolution deposits a thin layer of carryback onto the roller surface.
Over hours of operation, this layer builds into an uneven coating that changes the effective roller diameter at different points along its length. The belt begins to track erratically, edge wear accelerates, and the roller bearings experience unbalanced loading. The CEMA B rubber disc return idler solves this passively: alternating rubber discs create gaps along the roller where accumulated material simply falls away as the roller turns. The discs themselves flex slightly during rotation, cracking off any material that does adhere. The result is a consistently clean roller surface with zero water consumption and zero manual cleaning — ideal for light-duty unattended conveyor sections in cement and aggregate applications.
3. Key Features
Alternating Rubber Disc Design — Rubber discs spaced along the roller length create gaps where carryback falls away during rotation, maintaining a consistent roller diameter and preventing the buildup that causes belt mistracking in coal and clay handling applications.
Passive Self-Cleaning — No water spray, no scrapers, no manual intervention — the rubber discs flex during rotation, naturally shedding accumulated material without external power or consumables.
CEMA B Light-Duty Rating — 4-inch and 5-inch diameter rollers engineered for belt widths up to 48 inches — suitable for light-duty return sections in aggregate and sand handling conveyors.
Extended Bearing Life — By preventing unbalanced roller loading caused by uneven material deposits, rubber disc idlers help protect bearings from the eccentric forces that accelerate wear in standard flat return rollers.
Advanced Labyrinth Sealing — Multi-stage seals protect bearings from dust and moisture ingress common in mining and bulk material handling environments.
4. Rubber Disc Return vs Standard Return (CEMA B)
| Feature | CEMA B Rubber Disc Return (B4) | CEMA B Standard Return (B5) |
|---|---|---|
| Roller Surface | Alternating rubber discs on steel shell | Smooth steel shell |
| Self-Cleaning | Yes — passive disc flex shedding | No — buildup must be cleaned manually |
| Material Suitability | Sticky, wet, hygroscopic materials | Dry, free-flowing materials |
| Belt Tracking Stability | Consistent — no diameter changes from buildup | Degrades over time as buildup accumulates |
| Best For | Coal, clay, overburden, wet sand, sticky materials | Dry aggregates, sand, gravel |

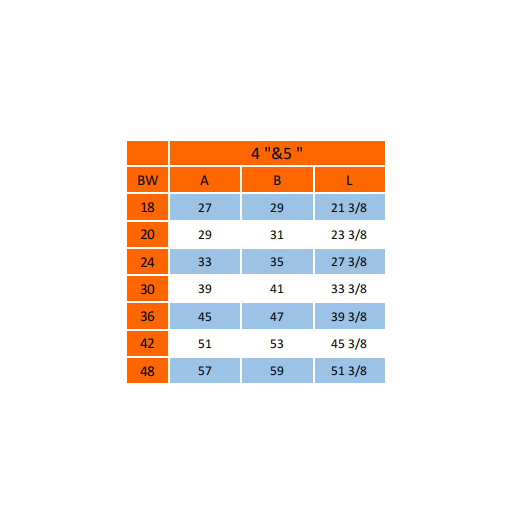

5. Dimensions – CEMA B Rubber Disc Return Idlers
ZOOMRY CEMA B rubber disc return idlers are manufactured with 4-inch and 5-inch diameter configurations for belt widths from 18 to 48 inches. Suitable for light-duty CEMA B return sections in mining, coal, cement, and aggregate conveyors:
|
|
4" Roller | 5" Roller | ||||
|---|---|---|---|---|---|---|
| BW | A | B | L | A | B | L |
| 18 | 27 | 29 | 21 3/8 | 27 | 29 | 21 3/8 |
| 24 | 33 | 35 | 27 3/8 | 33 | 35 | 27 3/8 |
| 30 | 39 | 41 | 33 3/8 | 39 | 41 | 33 3/8 |
| 36 | 45 | 47 | 39 3/8 | 45 | 47 | 39 3/8 |
| 42 | 51 | 53 | 45 3/8 | 51 | 53 | 45 3/8 |
| 48 | 57 | 59 | 51 3/8 | 57 | 59 | 51 3/8 |
Dimensions per CEMA B industry standards. BW=Belt width, A=Frame width, B=Overall width, L=Roller length (including rubber discs). Rubber disc diameter is approximately 1–2 inches larger than the steel shell diameter. All dimensions in inches.
What Information Do We Need for Return Idler Selection?
- Belt width, conveyor length, and belt speed
- Material type, moisture content, and stickiness characteristics
- Current return roller condition — buildup severity and cleaning frequency
- Operating environment — dust levels, temperature range, and washdown requirements
- Existing idler type, frame dimensions, and whether this is a retrofit or new installation
