1. Product Overview

ZOOMRY CEMA B return idlers provide light-duty standard return side support for belt conveyors up to 48-inch belt width. Engineered to CEMA B standards for mining and industrial applications, these flat return rollers support the empty belt on its return path — preventing sagging, maintaining proper belt tension, and reducing stress on the belt carcass across the return span. Available with 4-inch and 5-inch diameter rollers with IP66 labyrinth sealing. One roller per two drop brackets for straightforward installation on existing CEMA B return frames.

Standard return idlers are the most widely specified return side component — the baseline solution for dry, free-flowing material applications. For coal and aggregate conveyors where return belt conditions are clean and predictable, they offer the most cost-effective return support with straightforward spare parts availability. For sticky or wet applications, consider CEMA B rubber disc return idlers or V-return configurations.

---

2. Return Idler Function in the Conveyor System

In a belt conveyor system, the belt forms a continuous loop — loaded on the carrying side and empty on the return side. While carrying idlers receive the most engineering attention due to material load, the return side is equally critical for belt longevity. An unsupported return belt sags between frames, causing fluctuating tension that accelerates splice fatigue and increases drive power consumption.

The CEMA B return idler supports the belt at regular intervals on its return journey — typically spaced at 3 to 4 meters along the return span. The flat roller profile matches the return belt's natural flat profile after material discharge, providing full-width contact without concentrating stress at the belt edges. For light-duty conveyors in cement and sand handling applications, this simple flat roller design delivers reliable performance with minimal maintenance requirements.

---

3. Key Features

Standard Flat Roller Design — Full-width belt contact with smooth steel shell provides stable support for the return belt, preventing sagging and maintaining consistent tension across the return span in aggregate and sand handling applications.

CEMA B Light-Duty Rating — 4-inch and 5-inch diameter rollers engineered for belt widths up to 48 inches — the standard return side specification for light-duty conveyors.

IP66 Labyrinth Sealing — Multi-stage labyrinth seals protect precision bearings from dust and moisture ingress, delivering extended service life under normal operating conditions.

Simple Drop Bracket Installation — One roller per two drop brackets for quick installation and replacement on existing CEMA B return frames, minimizing conveyor downtime during maintenance.

Cost-Effective Spare Parts — Standardized CEMA B dimensions ensure global spare parts compatibility — the most widely available return idler configuration for light-duty conveyor systems.

---

4. Return Idler Types Comparison (CEMA B)

Feature	Standard Return (B5)	Self-Aligning Return (B3)	Rubber Disc Return (B4)
Roller Type	Single flat steel roller	Flat roller + pivot frame + guide rollers	Single roller with rubber discs
Belt Tracking	No active tracking	Active automatic correction	No active tracking
Self-Cleaning	No	No	Yes — rubber disc shedding
Cost	Lowest	Moderate	Moderate
Best For	Dry, clean belts — baseline return support	Mistracking-prone return sections	Sticky materials — coal, clay, overburden

---

5. Dimensions – CEMA B Return Idlers

ZOOMRY CEMA B return idlers are manufactured with 4-inch and 5-inch diameter flat rollers for belt widths from 18 to 48 inches. Suitable for light-duty CEMA B return sections in mining, coal, cement, and aggregate conveyors:

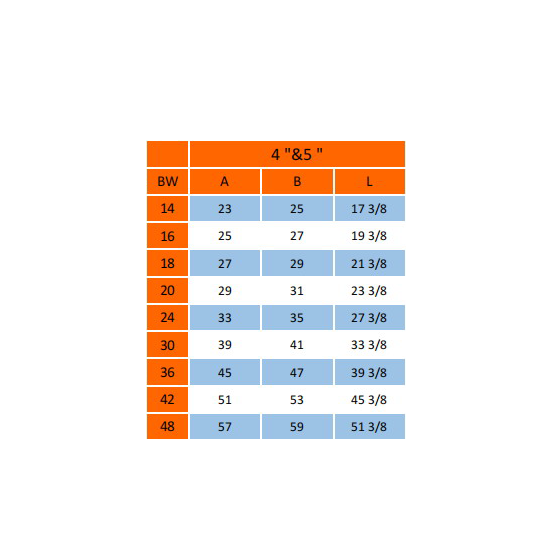

	4" Roller			5" Roller
BW	A	B	L	A	B	L
18	27	29	21 3/8	27	29	21 3/8
24	33	35	27 3/8	33	35	27 3/8
30	39	41	33 3/8	39	41	33 3/8
36	45	47	39 3/8	45	47	39 3/8
42	51	53	45 3/8	51	53	45 3/8
48	57	59	51 3/8	57	59	51 3/8

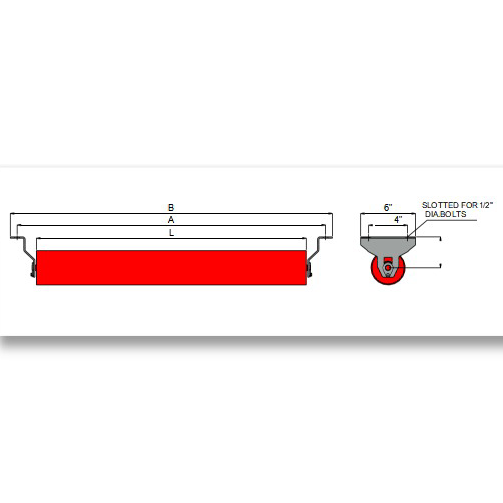

Dimensions per CEMA B industry standards. BW=Belt width, A=Frame width, B=Overall width, L=Roller length. Standard drop bracket spacing is one idler per two brackets. All dimensions in inches.

---

What Information Do We Need for Return Idler Selection?

• Belt width, conveyor length, and return side spacing requirements
• Material type, moisture content, and carryback characteristics on the return side
• Current return roller condition — wear patterns, bearing life, and replacement frequency
• Operating environment — dust levels, temperature range, and moisture exposure
• Existing idler type, frame dimensions, and whether this is a retrofit or new installation

---
