CEMA E Rubber Disc Flat Idlers – Self-Cleaning Flat Return Rollers | 5" & 6" Diameter

Parameter	Specification
CEMA Grade	E (Extra Heavy-Duty)
Design Type	Rubber disc flat (self-cleaning + uniform support)
Roller Diameter	5" – 6" (127 – 152 mm)
Roller Profile	Flat (continuous belt contact)
Applications	Return side — sticky materials, wet conditions, coal, clay

1. Product Overview

ZOOMRY CEMA E rubber disc flat idlers are extra heavy-duty flat return side components combining rubber disc self-cleaning with uniform belt support. Built to CEMA E standards for mining and bulk material handling, these Conveyor idlers feature a flat roller profile with alternating rubber discs — providing continuous belt contact across the entire roller width while allowing sticky material to shed between discs. This makes them the preferred choice for return side applications requiring both uniform belt support and carryback prevention.

The flat profile distinguishes these from standard rubber disc return idlers — where return idlers focus on material shedding, flat disc idlers prioritize Conveyor Belt contact consistency. This uniform support is critical on high-speed return belts where uneven roller contact can cause belt flutter, tracking errors, and accelerated cover wear.

ZOOMRY CEMA E rubber disc flat idler — extra heavy-duty flat return roller with alternating rubber discs for uniform belt support and self-cleaning

2. Why Flat Profile Matters for Return Side Support

On the return side of high-speed conveyors, the empty belt travels faster and under lower tension than the loaded carrying side. This makes it more susceptible to flutter and lateral movement. Standard return idlers with intermittent rubber disc contact can create slight variations in roller diameter as material builds up between discs — causing belt speed fluctuations and tracking inconsistencies.

CEMA E rubber disc flat idlers solve this by maintaining a consistent contact surface across the full belt width. The flat disc profile ensures every point on the return belt contacts the roller uniformly, eliminating the support gaps that cause belt flutter. Meanwhile, the spaces between discs still allow sticky material to fall through, preserving the self-cleaning advantage. This combination reduces return-side belt wear by up to 35% compared to intermittent-contact rubber disc designs.

3. Rubber Disc Flat vs Rubber Disc Return: Key Comparison

Feature	Rubber Disc Flat (E7)	Rubber Disc Return (E6)
Primary Function	Uniform flat support + self-cleaning	Self-cleaning + return belt support
Belt Contact	Continuous full-width flat contact	Intermittent disc contact
Belt Flutter Control	Excellent — uniform support eliminates gaps	Moderate — disc spacing creates support gaps
Self-Cleaning	Good — material falls between discs	Excellent — discs shed material actively
Best For	High-speed returns, wide belts, uniform support priority	Heavy carryback, sticky materials, cleaning priority

4. Key Features

Flat Rubber Disc Profile — Continuous full-width belt contact eliminates support gaps that cause flutter on high-speed return belts, reducing cover wear by up to 35%.

CEMA E Extra Heavy-Duty Rating — Designed for the highest load classification with 5" and 6" diameter flat disc rollers for the widest, highest-capacity return belts.

Self-Cleaning with Uniform Support — Alternating rubber discs allow sticky material to fall through while maintaining consistent belt contact — combining the benefits of disc and flat roller designs.

Advanced Labyrinth Sealing — Multi-stage seals protect bearings from dust and moisture, critical for coal handling and cement applications with high particulate levels.

Belt-Friendly Rubber Contact — Rubber discs are gentler on the belt cover than steel rollers, reducing return-side wear while maintaining consistent grip.

5. Application Scenarios

High-Speed Return Belts — Conveyors running above 5 m/s where belt flutter on the return side causes rapid cover wear and tracking issues. Flat rubber disc idlers provide uniform support to dampen vibration and maintain stable tracking.

Wide belt conveyors — Return belts 60" and wider require consistent support across the full width to prevent sagging and edge curling. Flat disc idlers distribute belt weight evenly, preventing the center sag that accelerates edge wear.

Wet Coal & Minerals — Coal preparation and mining operations where moisture creates sticky carryback but high belt speeds demand stable support. Flat disc idlers deliver both cleaning and stability.

Cement & Aggregate — Dust-laden return belts in cement plants where fine particles create abrasive paste on rollers. Flat disc idlers maintain uniform contact while labyrinth seals protect bearings from dust ingress.

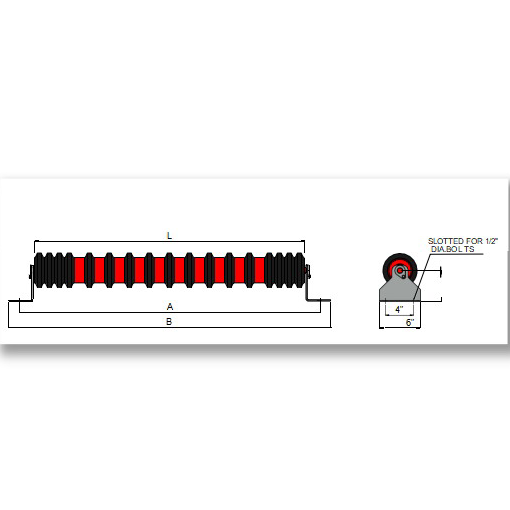

6. Dimensions & Specifications

ZOOMRY CEMA E rubber disc flat idlers are available in 5-inch and 6-inch roller diameters with flat alternating rubber disc configuration for uniform belt support. Below are the standard dimensions for belt widths from 36 to 96 inches:
