1. Product Overview

ZOOMRY CEMA D V-return idlers are heavy-duty return side components with self-centering V-design for belt conveyor systems in mining and quarrying. Built to CEMA D standards with 5–6 inch diameter rollers, these Conveyor idlers automatically center the return belt, reducing edge wear and preventing material build-up on high-capacity conveyors up to 72-inch belt width.

Compared to CEMA E V-return idlers designed for extra heavy-duty 96-inch belts, CEMA D V-return idlers cover the heavy-duty 24–72 inch belt width range — the most common size class for mining, aggregate, and cement plant conveyors.

---

2. Why V-Return Design for Heavy-Duty Return Side?

The return side of a heavy-duty conveyor presents unique challenges — the empty belt travels faster than the loaded side, with lower tension making it more prone to drift. On CEMA D conveyors handling abrasive materials like crushed stone, iron ore, and overburden, return belt mistracking causes rapid edge wear and structural contact damage.

CEMA D V-return idlers address this with two angled rollers forming a V-shaped cradle. This configuration provides natural self-centering — the belt gravity-feeds into the V-groove, eliminating the drift common with flat return idlers. The angled rollers also shed loose carryback material, preventing the roller build-up that causes imbalance and premature bearing failure. For heavy-duty conveyors, this passive correction reduces return-side edge wear by up to 40% compared to standard flat return rollers.

---

3. CEMA D vs CEMA E V-Return: Key Differences

Feature	CEMA D V-Return (D1)	CEMA E V-Return (E1)
CEMA Rating	D (Heavy-Duty)	E (Extra Heavy-Duty)
Roller Diameter	5" – 6"	6" – 7"
Max Belt Width	72"	96"
H1 Options	4 1/2" / 7"	Fixed per BW
Best For	Standard mining, aggregate, cement conveyors	Ultra-wide high-capacity mining conveyors

---

4. Key Features

CEMA D Heavy-Duty Rating — Engineered for high-load return side applications with 5" and 6" diameter rollers for belt widths up to 72 inches.

Self-Centering V-Design — Two angled rollers create a natural cradle that automatically centers the return belt, reducing edge wear by up to 40% compared to flat return idlers.

Dual H1 Configuration — Available in H1=4 1/2" and H1=7" base heights to match different conveyor stringer designs and retrofit requirements.

Advanced Labyrinth Sealing — Multi-stage seals protect bearings from dust and moisture in aggregate quarry and mining environments.

Material Shedding — Angled rollers naturally shed loose carryback, preventing roller build-up and maintaining balanced rotation for extended bearing life.

---

5. Application Scenarios

Mining — Iron ore, copper, and coal conveyors in mining operations with 48–72 inch belt widths. V-return idlers maintain return belt alignment on long overland sections.

Aggregate & Quarry — Crushed stone, sand, and gravel conveyors in aggregate quarry operations where abrasive dust accelerates component wear.

Cement — Limestone and clinker return belts in cement plants requiring dust-resistant labyrinth seals and stable belt tracking.

---

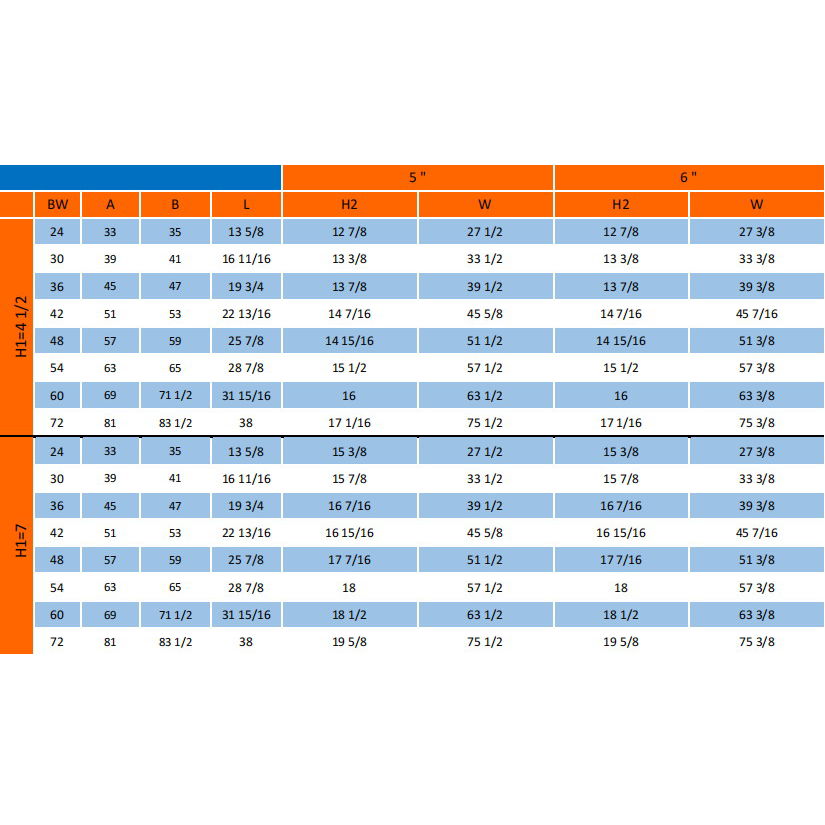

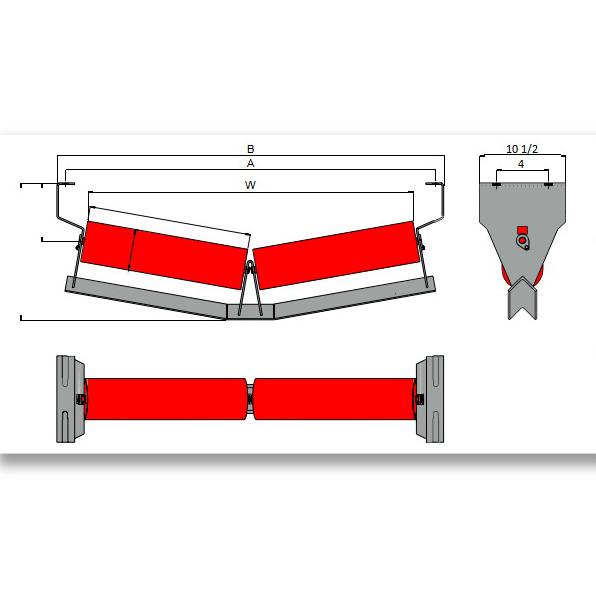

6. Dimensions – CEMA D V-Return

ZOOMRY CEMA D V-return idlers are manufactured to CEMA D industry-standard dimensions with H1=4 1/2" and H1=7" base height options. Available in 5-inch and 6-inch roller configurations for belt widths from 24 to 72 inches:

				5" Roller		6" Roller
H1	BW	A	B	L	H2	W	H2	W
4 1/2"	24	33	35	13 5/8	12 7/8	27 1/2	12 7/8	27 3/8
	30	39	41	16 11/16	13 3/8	33 1/2	13 3/8	33 3/8
	36	45	47	19 3/4	13 7/8	39 1/2	13 7/8	39 3/8
	42	51	53	22 13/16	14 7/16	45 5/8	14 7/16	45 7/16
	48	57	59	25 7/8	14 15/16	51 1/2	14 15/16	51 3/8
	54	63	65	28 7/8	15 1/2	57 1/2	15 1/2	57 3/8
	60	69	71 1/2	31 15/16	16	63 1/2	16	63 3/8
	72	81	83 1/2	38	17 1/16	75 1/2	17 1/16	75 3/8
7"	24	33	35	13 5/8	15 3/8	27 1/2	15 3/8	27 3/8
	30	39	41	16 11/16	15 7/8	33 1/2	15 7/8	33 3/8
	36	45	47	19 3/4	16 7/16	39 1/2	16 7/16	39 3/8
	42	51	53	22 13/16	16 15/16	45 5/8	16 15/16	45 7/16
	48	57	59	25 7/8	17 7/16	51 1/2	17 7/16	51 3/8
	54	63	65	28 7/8	18	57 1/2	18	57 3/8
	60	69	71 1/2	31 15/16	18 1/2	63 1/2	18 1/2	63 3/8
	72	81	83 1/2	38	19 5/8	75 1/2	19 5/8	75 3/8

---
