Return roller

ZOOMRY Return Roller supports the return side of belt conveyors to prevent sagging. Mounted on drop brackets, it ensures stable belt tracking in mining and quarry applications. Self-cleaning design reduces buildup compared to standard steel rollers.

Parameter	Value
Product Name	Return Roller for Belt Conveyor
Material	High Quality Carbon Steel
Belt Width & Function	500 – 2,400 mm; Return side belt support & anti-sag
Certification	ISO 9001, CEMA, DIN
Applications	Mining, Cement, Port, Power Plants

Product Detail
Quality Standards
FAQ
Related Resources

Return Roller Overview

ZOOMRY return rollers are flat idler components mounted on the return side of belt conveyor systems to support the returning belt and prevent sagging. Available in flat carry and combination bracket configurations, these return idler rollers can serve as either return-side support or flat carry idlers — providing versatile installation options for mining and quarry conveyor applications.

Compared with standard steel rollers, the flat return roller features a streamlined design that helps minimize material buildup on the return belt, supporting reduced maintenance frequency under normal operating conditions.

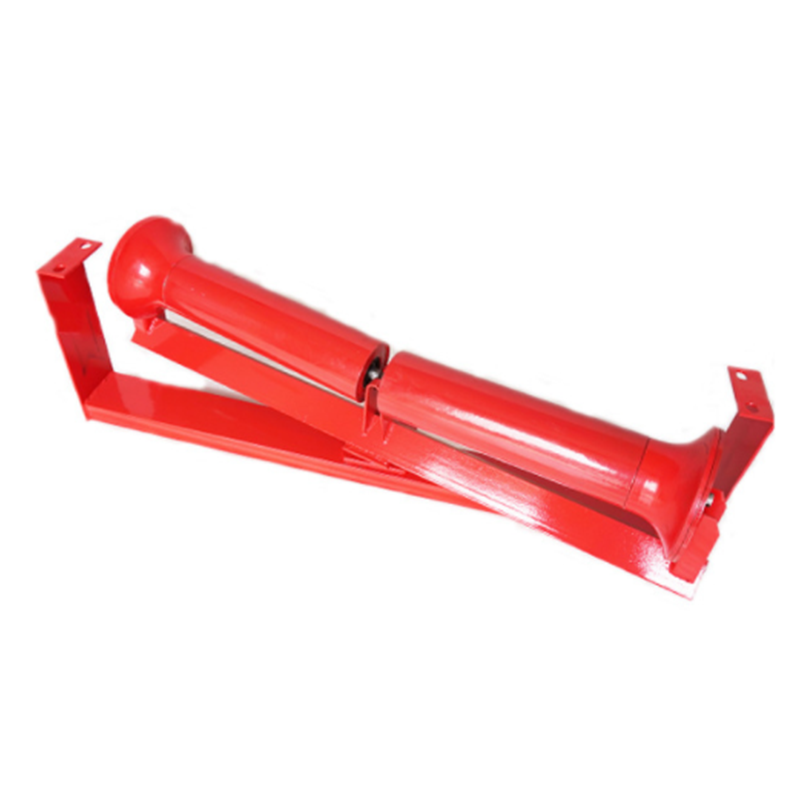

ZOOMRY flat return roller for belt conveyor return side support

ZOOMRY Return Roller — Flat Return Roller with Drop Bracket for Stable Belt Support

Return Roller vs Standard Carry Roller: What Is the Difference?

While carry rollers support the loaded belt on the top side of the conveyor, return rollers handle the empty belt on the underside — where material spillage and dust accumulation can cause tracking issues. The return roller design focuses on three key functions:

Belt Support & Anti-Sag: Prevents the return belt from stretching and sagging between support points, maintaining consistent tension across the conveyor length.
Self-Cleaning Action: The smooth roller surface discourages material adhesion. Unlike spiral return rollers which actively scrape the belt, the flat return roller is preferred for clean, dry applications.
Dual-Purpose Mounting: The combination bracket design allows the same roller to serve as either a return idler or a flat carry idler, reducing inventory complexity.

Flat Return Roller vs Spiral Return Roller: Which One to Choose?

Feature	Flat Return Roller	Spiral Return Roller
Cleaning Mechanism	Passive shedding — smooth surface discourages adhesion	Active scraping — spiral grooves remove sticky material
Best Material Type	Dry, free-flowing materials — sand, gravel, aggregates	Sticky, wet materials — clay, coal, limestone
Belt Wear	Minimal — no abrasive contact with belt surface	Moderate — spiral edges contact the belt continuously
Cost	Lower — simpler manufacturing	Higher — spiral forming adds production cost
Typical Application	Quarry, Port, Cement	Mining, Coal, Power

For applications where the return belt stays relatively clean, the flat return roller offers a cost-effective solution with minimal belt wear. For sticky material, the steel spiral return roller actively cleans the belt. For intermediate needs, rubber disc return rollers provide passive cleaning without abrading the belt.

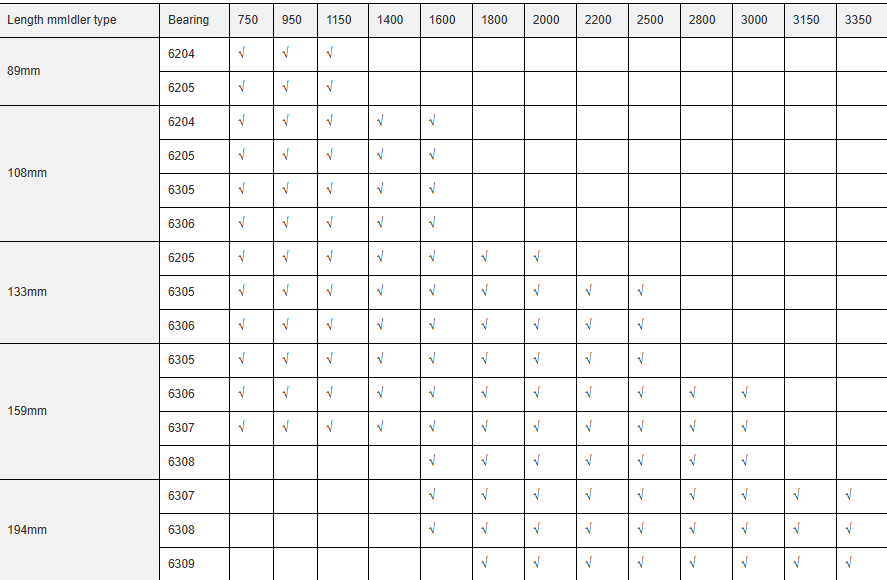

Return Roller Specifications

Roller Diameter	Bearing	750	950	1150	1400	1600	1800	2000	2200	2500	2800	3000	3150	3350
89 mm	6204	✓	✓	✓	—	—	—	—	—	—	—	—	—	—
89 mm	6205	✓	✓	✓	—	—	—	—	—	—	—	—	—	—
108 mm	6204	✓	✓	✓	✓	✓	—	—	—	—	—	—	—	—
	6205	✓	✓	✓	✓	✓	—	—	—	—	—	—	—	—
	6305	✓	✓	✓	✓	✓	—	—	—	—	—	—	—	—
	6306	✓	✓	✓	✓	✓	—	—	—	—	—	—	—	—
133 mm	6205	✓	✓	✓	✓	✓	✓	✓	—	—	—	—	—	—
	6305	✓	✓	✓	✓	✓	✓	✓	✓	✓	—	—	—	—
	6306	✓	✓	✓	✓	✓	✓	✓	✓	✓	—	—	—	—
159 mm	6305	✓	✓	✓	✓	✓	✓	✓	✓	✓	—	—	—	—
	6306	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	—	—
	6307	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	—	—
	6308	—	—	—	—	✓	✓	✓	✓	✓	✓	✓	—	—
194 mm	6307	—	—	—	—	✓	✓	✓	✓	✓	✓	✓	✓	✓
	6308	—	—	—	—	✓	✓	✓	✓	✓	✓	✓	✓	✓
	6309	—	—	—	—	—	✓	✓	✓	✓	✓	✓	✓	✓

Standard roller diameter, bearing, and length combinations. Final selection depends on belt width, idler spacing, load conditions, and mounting requirements. Custom configurations available upon request.

Why Choose ZOOMRY Return Rollers

Multi-Stage Sealing: Labyrinth seal arrangement helps restrict dust and moisture ingress; IP66-rated configuration available for specified conditions.
Precision Steel Tube: MIG welded pressings for low TIR (total indicator runout) and stable belt tracking.
Quality Inspection: Dimensional, runout, rotation resistance, and sealing tests performed according to order scope.
Belt Width Coverage: Available for belt widths from 500 mm to 2,400 mm.

Video

Return Roller Manufacturing

Return Idler Roller Assembly

Related Products

Steel Spiral Return Roller

Self-cleaning spiral design for sticky return belt applications.

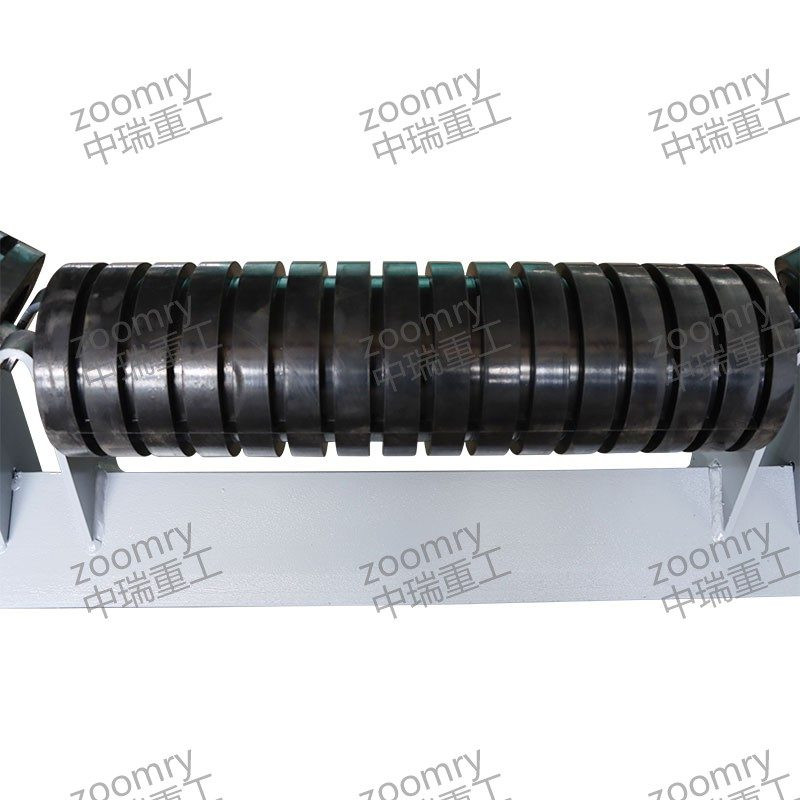

Rubber Disc Return Roller

Rubber discs prevent material buildup on the roller surface.

Steel conveyor roller

Carbon-steel rollers for abrasive mining and cement conveying.

Industry Solutions

Aggregate & Quarry

Flat return rollers for dry aggregate and quarry conveyor applications.

Coal Handling

Return rollers for continuous coal conveying in mines and power plants.

Need Return Rollers for Your Belt Conveyor?

Tell us your belt width, roller diameter, and material type — our engineers will recommend the right return roller configuration for your application.

Request Return Roller Quote →

Eight Quality Indicators for Return Rollers

ZOOMRY tests return rollers against eight quality indicators to support reliable performance in belt conveyor applications:

Radial Runout: Affects conveying stability and belt tracking consistency. Lower runout values support smoother belt travel.
Axial Play: Impacts roller service life and bearing performance under side load conditions.
Rotation Flexibility: Affects belt life and drive power consumption. Flexible rotation reduces belt friction.
Waterproof Performance: IP66-rated sealing configuration available for wet or washdown environments.
Dustproof Performance: Multi-stage labyrinth seals help restrict particle ingress in dusty environments.
Axial Load Capacity: Influences durability when rollers operate under belt misalignment conditions.
Impact Resistance: Withstands material loading shocks at transfer points without deformation.
Rotation Resistance: Low rolling resistance helps limit belt wear and energy consumption over long operating hours.

Quality inspection items are performed according to order scope and product specification. Contact ZOOMRY for detailed test data for your specific roller configuration.

Return Roller FAQ

Q: What is a return roller and how is it different from a carrying idler?

A return roller is a flat idler component mounted on the underside of a belt conveyor to support the empty returning belt and prevent sagging. Carrying idlers support the loaded belt on the top side. Return rollers are designed with a streamlined surface that helps reduce material buildup where spillage and dust accumulate.

Q: How do I choose the right return idler roller for my belt conveyor?

Return roller selection depends on belt width, belt speed, idler spacing, and operating environment. Standard diameters range from 89 mm to 194 mm with bearing types from 6204 to 6309. Match the roller length to your belt width class and select the bearing based on load duty. Share your existing roller dimensions for a compatibility review.

Q: When should I use a flat return roller instead of a spiral return roller?

Flat return rollers are recommended for clean, dry materials such as sand, gravel, and aggregates where passive shedding is sufficient. Spiral return rollers are better for sticky or wet materials like clay and coal that require active scraping. For moderate stickiness, rubber disc return rollers provide a middle-ground solution.

Q: Can a return roller be used as a carry idler?

Yes. ZOOMRY return rollers with the combination bracket design can serve as either return idlers or flat carry idlers. This dual-purpose mounting reduces inventory complexity for multi-conveyor sites, allowing the same roller to be used in multiple positions.
