Mobile Stacker Overview

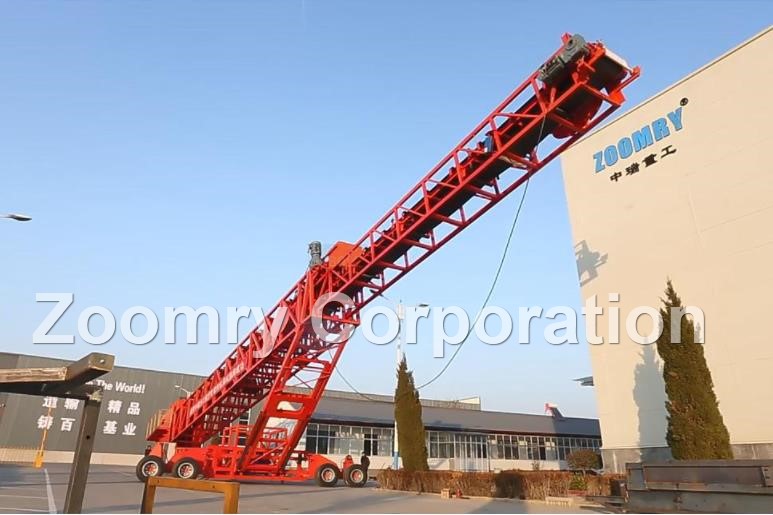

ZOOMRY mobile stacker conveyor — also known as a radial telescopic stacker — is a self-propelled bulk material stacking system for stockyard stacking, loading, and shipping applications. The telescopic boom extends and retracts to reach different discharge heights while 360° slewing enables radial stacking without machine repositioning. Belt widths from 800 to 1,600 mm with capacities from 500 to 3,500 m³/h.

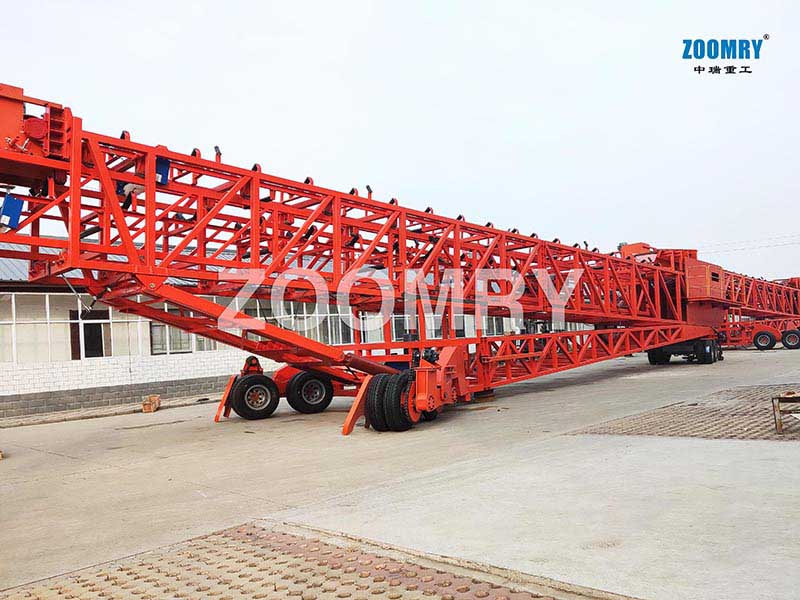

The wheeled chassis provides site maneuverability, allowing the stacker to be repositioned at different locations. It adapts to port, mining, and quarry operations where flexible stockpile management is essential. For soft terrain applications, the tracked radial stacker configuration may be more suitable.
How It Works

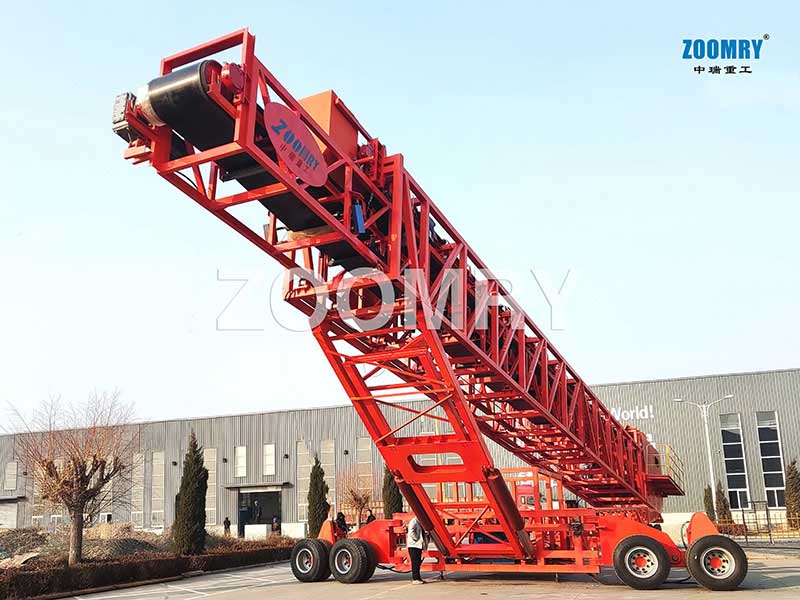

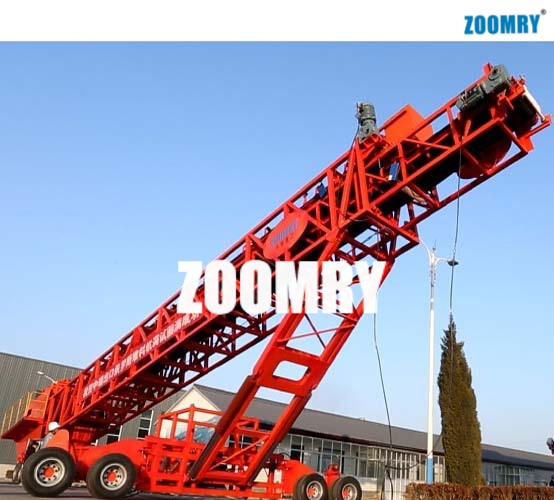

Material is fed onto the main Conveyor Belt at the hopper end, transferred along the telescopic boom, and discharged at the desired stacking point. The hydraulic telescopic mechanism allows the boom to extend and retract smoothly, while the 360° slewing function enables radial stacking without repositioning the machine.
The included angle of the stacker can be controlled between 4° and 18°, giving operators control over discharge height and material trajectory. This adjustability supports reduced dust generation and material segregation through layered stacking.
Advantages
- Extended Reach & Height: Telescopic boom reaches heights and distances beyond fixed conveyors, maximizing storage capacity.

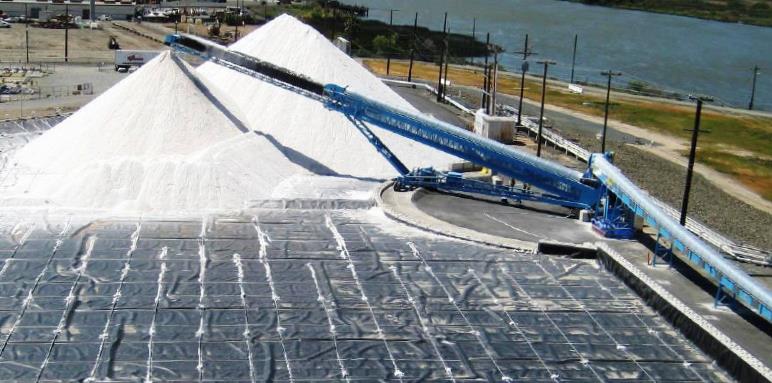

- 360° Radial Stacking: Creates large conical stockpiles without machine repositioning.
- Compact Maneuverability: Wheeled design navigates stockyard and terminal spaces efficiently.
- Layered Stacking: Adjustable discharge height helps reduce material segregation and dust generation.
- Cost-Effective Operation: Can help reduce loader dependency in suitable stockyard layouts.
Comparison: Telescopic Stacker vs Traditional Methods
| Comparison Factor | Mobile Telescopic Stacker | Wheel Loader + Truck |
|---|---|---|
| Labor Requirement | 1 operator | 2-3 operators |
| Stacking Height | Up to 20 m | 5-8 m |
| Material Segregation | Reduced (layered stacking) | Higher (end-dumping) |
| Mobility | Self-propelled, rapid relocation | Multiple vehicle coordination |
| Dust Control | Controlled discharge height | Higher dust generation |
Mobile Stacker Specifications
| Model | Belt Width (mm) | Max Capacity (m³/h) | Belt Speed (m/s) | Standard Length (m) | Max Inclination | Telescopic (m) |
|---|---|---|---|---|---|---|
| ZR80SF | 800 | 500 | 2.50 | 40/52/60/67 | 18° | 10–22 |
| ZR100SF | 1,000 | 850 | 2.50 | 40/52/60/67 | 18° | 10–22 |
| ZR120SF | 1,200 | 1,500 | 3.15 | 40/52/60/67 | 18° | 10–22 |
| ZR140SF | 1,400 | 2,100 | 3.15 | 40/52/60/67 | 18° | 10–22 |
| ZR160SF | 1,600 | 3,500 | 4.00 | 40/52/60/67 | 18° | 10–22 |
Standard models shown. Custom configurations available upon request. Capacity depends on material bulk density and belt speed.
Application Industries
- Ports & Terminals: Loading and unloading bulk cargo including coal, grain, fertilizer, and minerals.
- Mining Operations: Stockpiling iron ore, bauxite, copper concentrate, and overburden.
- Cement Plants: Stacking limestone, clinker, gypsum, and additives.
- Construction Sites: Moving and stacking aggregates, sand, and gravel.
- Power Plants: Coal yard management from stockpile to boiler feed.

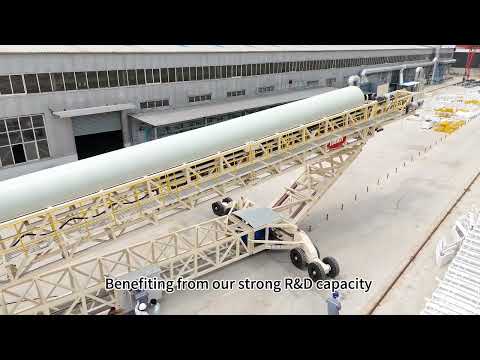

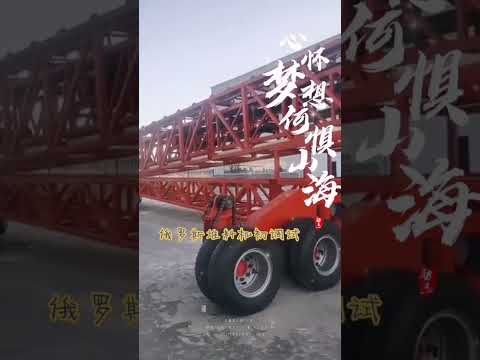

Video
Industry Solutions
Mobile stackers for ore and overburden stockpiling.
Stacker conveyors for flexible stockyard management.
