Telescopic Stacker

Telescopic Stacker Conveyor

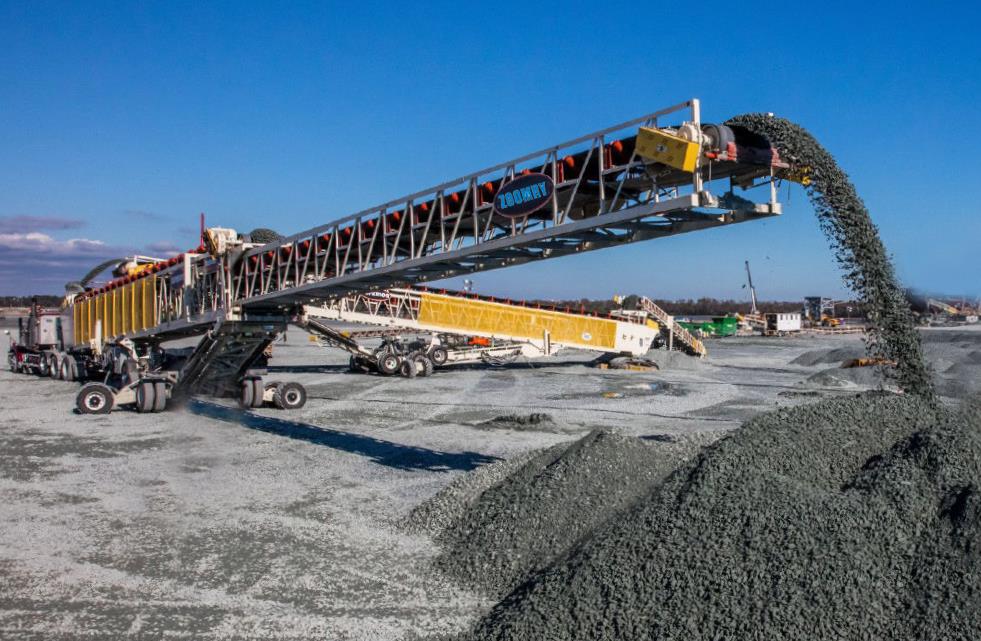

According to the field use needs of material yard, open-pit mine, wharf and concentrator, Telescopic stacker conveyor can realize flexible movement and stacking. Zoomry also can provide 30m, 40m, 50m long stackers for customers to choose.
  • Product Detail

Description:

Telescopic stacker Conveyor is the ultimate solution for flexible mobile stacking of bulk materials. Designed for maximum efficiency and convenience, this innovative conveyor system is the perfect choice for any industrial setting, whether it's a yard, open-pit mine, wharf, or concentrator.

The stacking height of our telescopic stacker can reach 20 meters, and it is capable of handling a wide variety of materials, from coal and iron ore to grain and fertilizer. The system is fully movable, allowing it to be easily transported to different locations as needed. It is also rotatable, which means that it can be maneuvered to stack materials in different directions for maximum efficiency. It can be used to replace loader operations in various stacking situations and improve work efficiency.

One of the most impressive features of our Telescopic Stacker Conveyor is its retractable design. This means that it can be easily collapsed when not in use, saving valuable space in your industrial facility. When you're ready to use it again, simply extend the conveyor to its full length and get to work.

Whether you need to stack materials in a tight space or require a conveyor system that can be easily moved around your facility, our Telescopic Stacker Conveyor is the perfect solution. So why wait?Invest in the ultimate flexible mobile stacking system today and see the difference it can make in your industrial operations!


Application:

coal stacker

A telescopic stacker conveyor is a type of material handling equipment that is commonly used in industrial settings to handle bulk materials such as coal, grain, mineral, and aggregate. It is designed to be mobile and flexible, which makes it ideal for applications where materials need to be transported over a long distance or where the layout of the site changes frequently.

The telescopic stacker conveyor consists of a base conveyor that is mounted on a movable frame. The conveyor is equipped with a telescopic boom that can extend and retract, allowing it to reach farther distances and stack materials higher. The boom can be raised or lowered, tilted, and rotated to help control the flow of materials.

One common application of a telescopic stacker conveyor is in stockpiling materials such as coal, ore, and sand. The conveyor can be used to build a large stockpile of materials that can be easily accessed by other equipment such as loaders and trucks. The telescopic boom allows the conveyor to reach over obstacles and stack materials in tight spaces, making it ideal for use in mines and quarries.

Another application of a telescopic stacker conveyor is in port and terminal operations. The conveyor can be used to load and unload ships and barges, allowing for efficient handling of bulk materials such as grains, fertilizers, and minerals. The telescopic boom can reach over the sides of the vessel, making it easy to reach all areas of the cargo hold.


Series model:

Model Width/mm Maximum
Capacity m3/h
Speed
m/s
Standard
length/m
Maximum
angle
Telescopic
length/m
ZR80SF 800 500 2.5 30/40/50 20° 10-20
ZR100SF 1000 850 2.5 30/40/50 20° 10-20
ZR120SF 1200 1500 3.15 30/40/50 20° 10-20
ZR140SF 1400 2100 3.15 30/40/50 20° 10-20
ZR160SF 1600 3500 4 30/40/50 20° 10-20

The above are our standard models, we can customize production according to customer needs.

We have a long and solid cooperation with SEW and Flnders and look forward to your inquiry.


The application advantages as follows:

1. Rotating the stacker fan-shaped and increase the stacker capacity;

2. The length is able to further increased the stacking capacity;

3. It can be moved as a whole, easy for users to change the place of use;

4. Through the expansion and contraction of the hydraulic cylinder, the stacker angle adjustable, can reduce the dust and easy to move and maintenance at the same time;
5. Non-standard design of length and transportation capacity according to users’ needs.


Structural composition of stacker:

Telescopic conveyor, conveyor, mobile stacker


Telescopic conveyor, conveyor, mobile stacker

1-Hydraulic lifting system

2-Front wheel walking device

3-Hydraulic outriggers

4-Hydraulic station system

5-Base 6-Electrical control box

7-Tail wheel rotation device

8-Tow bar

9-Maintenance platform

10-Hopper

11 -Main conveyorbelt

12-Wire rope traction device

13-Telescopic conveyorbelt

Telescopic conveyor, conveyor, mobile stacker

Telescopic conveyor, conveyor, mobile stacker

The included angle of the stacker can be controlled between 4 degrees and 20 degrees.

telescopic stacker, stacker conveyor, mobile stacker

The front wheel traveling device is mainly composed of a traveling frame, a hydraulic motor, a traveling tire, a chain and a chain guard. The front wheel running device is connected with the base by a pin shaft. In normal use, the hydraulic outrigger will fully lift the front of the base. After the tire is off the ground, the front wheel running device will be manually rotated to expand to the working position. After reaching the working position, use the pull rods on both sides of the base to connect with the pin shaft of the front wheel running device. Then the hydraulic outriggers can be retracted and the tires are all on the ground, and then they can work normally or rotate; when the mobile stacker needs to leave the work site, the outriggers of the oil cylinder can be lifted up again, so that the tires are off the ground and then the front wheel drive device can be manually rotated At 90°, pull it away after positioning with a pin shaft. Note that the tire pressure of the walking tire is 11-12Mpa, and the maximum cannot exceed 12Mpa.

mobile stacker, stacker conveyor, telescopic conveyor

The electric control box is bolted and installed on the base. The electric control box is the operation center of the entire stocker, and all operations of the stocker are completed on the electric control box.

telescopic stacker

The tail wheel rotating device is mainly composed of a tire, a turntable, and a bracket, and the base and the fixed frame of the belt conveyor are all installed on the bracket of the tail wheel rotating device.



Telescopic conveyor, mobile stacker, stacker

conveyor size, stacker conveyor

conveyor size, stacker conveyor
