superior radial stacker

Bulk commodities can be stacked on Zoomry superior radial stacker using hydraulic units that travel in a radial motion. We offer services for designing, producing, installing, and maintaining products.
  • Product Detail

superior radial <a href= target='_blank'>stacker</a>

The mobile stacker is mainly used for stockpiling in the stockyard. Its main function is to increase the stockpiling area, and to stack stockpiles far and near. The stacking distance is 14-15 meters; the maximum height can reach 14 meters.
The far and near stacking of the mobile stacker is completed through the telescopic traction device behind the telescopic belt conveyor. Start the operation button of the wire rope traction device to control the stretching distance of the telescopic belt conveyor; the height of the stacker is completed through the hydraulic lifting cylinder, and the lifting operation button is activated to control the lifting height of the stacker; Wheel walking device to complete, start the stacker walking operation button to rotate the stacking position, stop after reaching the designated position, or set the rotation angle, and realize automatic left and right automatic rotation by modifying the walking time on the control panel.


Series model

Model Width/mm Maximum
Capacity m3/h
ZR80SF 800 500 2.5 30/40/50 20° 10-20
ZR100SF 1000 850 2.5 30/40/50 20° 10-20
ZR120SF 1200 1500 3.15 30/40/50 20° 10-20
ZR140SF 1400 2100 3.15 30/40/50 20° 10-20
ZR160SF 1600 3500 4 30/40/50 20° 10-20

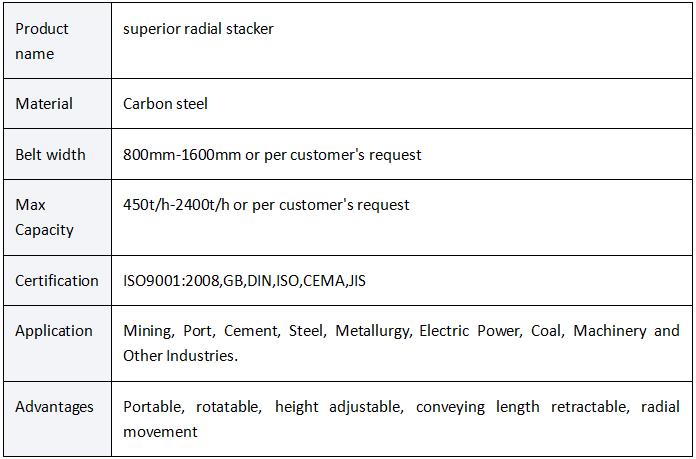

More details:

superior radial stacker

superior radial stacker

The included angle of the stacker can be controlled between 4 degrees and 20 degrees.
