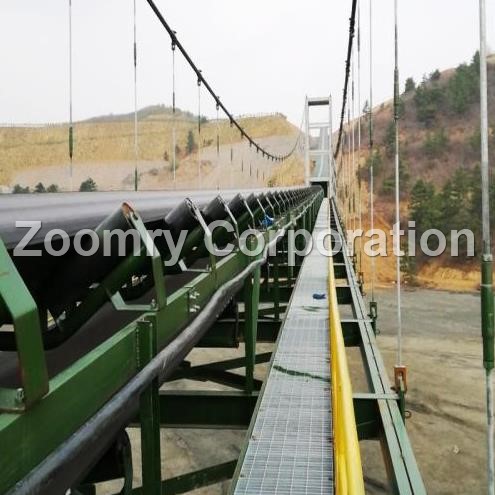

Hebei Yuantong Mining – 3,300m Long-Distance belt conveyor System
Project Location: Yuantong Mining, Hebei, China
Equipment: One set of long-distance belt conveyor
Belt Width: 1,400 mm
Conveying Length: 3,300 meters (single flight)
Belt Speed: 2.5 m/s
Material: Iron ore and aggregates
Project Background
Hebei Yuantong Mining is a large-scale iron ore mining and processing enterprise. As production expanded, the existing truck transport between the mine pit and the processing plant became a bottleneck: the 3.3 km mountainous route caused high fuel costs, dust pollution, and frequent traffic delays. The mine needed a continuous, high-capacity, and environmentally friendly conveying solution to replace truck haulage and meet stricter emission standards.
Project Requirements
The client requested a single long-distance belt conveyor system with the following specifications:
- Conveying length: 3,300 meters (without intermediate transfer stations)
- Belt width: 1,400 mm (to handle iron ore lump size up to 300 mm)
- Capacity: ≥ 2,000 t/h (continuous)
- Terrain: Multiple gentle slopes and one horizontal curve (radius ≈ 800 m)
- Environmental standard: Dust emission ≤ 10 mg/m³
- Reliability: 24/7 operation with minimal maintenance
ZOOMRY's Customized Solution
Core Equipment – Long-Distance Belt Conveyor
ZOOMRY designed and supplied a single-flight long-distance belt conveyor (3,300 m) with the following features:
- Belt width: 1,400 mm, with ST1600 steel cord belt (tensile strength ≥ 1,600 N/mm) to handle heavy loads
- Belt speed: 2.5 m/s (optimized for iron ore to reduce dust and belt wear)
- Drive system: 2 × 315 kW variable-frequency motors (totaling 630 kW) with soft start, ensuring smooth operation on the uphill section
- Curve adaptation: Special friction self-aligning idlers installed at the horizontal curve to prevent belt deviation
- Idlers: Heavy-duty type (diameter 159 mm, rotational resistance ≤ 2.5 N) with labyrinth seals for dusty environment
- Belt Cleaners: Dual tungsten-tipped scrapers at head and tail (cleaning efficiency ≥ 96%)
- Full enclosure: Steel covers along the entire conveyor to suppress dust and protect against weather
Dust Control System
The sealed covers and dust extraction points at transfer areas reduced dust emissions from an estimated 25 mg/m³ (previous truck transport) to below 8 mg/m³, fully complying with local environmental regulations.
Implementation Process
Design & Manufacturing
ZOOMRY’s engineering team conducted a topographic survey of the 3.3 km route. The conveyor was designed with a segmented steel frame to match the mountain terrain. All components were manufactured at ZOOMRY’s ISO 9001-certified factory and pre-assembled in sections to reduce on-site work.
Installation & Commissioning
A 12-person installation team completed the assembly in 60 days using a “sectional lifting” method. The belt splicing was done by vulcanization. After a 72‑hour load test, the conveyor achieved a stable capacity of 2,150 t/h, exceeding the requirement.
Training & After-Sales
ZOOMRY provided 10 days of on‑site training for the mine’s maintenance crew, covering daily inspection, belt tracking, and emergency procedures. A spare parts kit (idlers, scrapers, sensors) was stocked locally for rapid replacement (≤ 7 days).
Project Outcomes
- Efficiency gain: The mine eliminated 40 truck trips per day, reducing transport time from 45 minutes to 15 minutes per cycle. Overall throughput increased by 30%.
- Environmental compliance: Dust emissions dropped to 7.5 mg/m³, avoiding penalties and improving community relations.
- Cost savings: Energy consumption per ton reduced by 50% compared to trucks; annual maintenance costs decreased by 60%.
- Reliability: The conveyor has operated for over 8 years with an availability rate of 99.3%, and no major component replacement has been needed.
Why Choose ZOOMRY?
As a belt conveyor manufacturer with more than 20 years of production experience, ZOOMRY is a factory integrating design, R&D, and manufacturing. Our company has a professional after-sales service team that can solve customer problems within 24 hours. Our mission is to create value for customers and make transportation more environmentally friendly and efficient! Our vision is to become the leader in the global bulk material handling industry!
For this project, ZOOMRY provided a complete EPC service – from survey, design, manufacturing, installation, to training and after-sales support. The 3,300 m long-distance conveyor has become a benchmark for mining conveying solutions in Hebei province.
