Product Overview

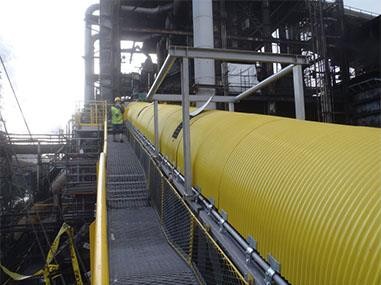

A motorized conveyor Rain Cover is an advanced protective accessory for belt conveyor systems, featuring an electric drive system that enables automated opening and closing of the cover sections. This design is particularly suited for outdoor installations where frequent maintenance access is required, eliminating the need for manual lifting of heavy cover panels.

ZOOMRY offers motorized rain covers designed to fit a wide range of belt widths (500 to 2,000 mm), available in full cover and 3/4 cover configurations. The electric drive system can be controlled remotely via push-button or integrated with plant PLC systems, providing convenient and safe access to the Conveyor Belt for inspection, maintenance, and cleaning tasks.

Key Design Features

Motorized drive system
Equipped with an electric motor and drive mechanism that enables smooth, controlled opening and closing of cover sections. The system can be operated via remote control, push-button, or integrated with plant automation systems.

Maintenance-friendly design
The motorized operation eliminates the need for manual lifting of heavy cover panels, significantly improving operator safety and reducing maintenance time. Covers can be opened to provide full access to the conveyor belt.

Robust construction
Manufactured from cold-rolled steel sheet or galvanized steel sheet with surface pre-treatment, subjected to roller coating or PVC film lamination process, and then baked, cured, and cooled for final formation. The result is a durable, corrosion-resistant cover that withstands harsh environmental conditions.

Superior sealing effect

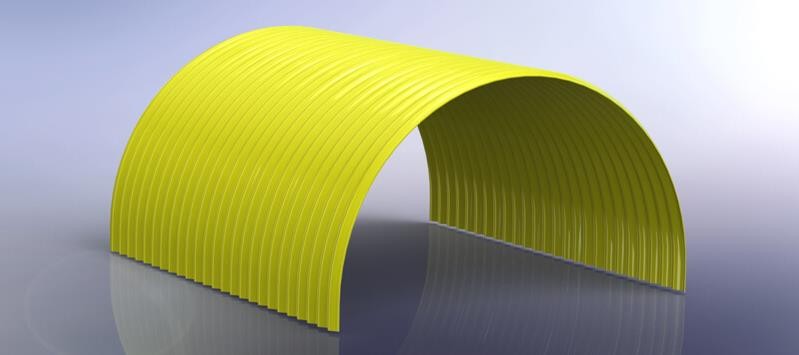

The curved cover section is attached to the topside of a weather-tight seal and securely connected to the bottom support bracket, creating an effective barrier against moisture ingress and dust escape.

Streamlined profile
The curved, streamlined design enables rainwater to be easily discharged while preventing the belt from being displaced by strong winds — a critical feature for coastal or exposed installations.

Features

Simple structure: Curved cover section, weather-tight seal, and support bracket.

Robust construction: Cold-rolled steel sheet or galvanized steel sheet with surface pre-treatment, subjected to roller coating or PVC film lamination process, and then baking, curing, and cooling for final formation of the curved conveyor cover.

Good sealing effect: Curved cover section is attached to the topside of the weather-tight seal and connected to the bottom support bracket.

High stability: Specially treated steel sheets have stable properties, delivering long service life and corrosion protection against rain and dust.

Superior look: The streamlined design of the conveyor cover enables rainwater to be easily discharged while preventing the belt from moving off its original position due to strong winds.

Specifications

Full cover and 3/4 cover dimensions available for standard belt widths. Custom sizes and motorized configurations available upon request.

Model	Belt Width (mm)	Conveyor Size (mm)				Full Cover (mm)				3/4 Cover (mm)
		D	F	B	A	L	W	T	R1	L	W	T	R1
YDT5	500	89	125	740	800	862	846	573	423	862	846	573	423
YDT6	650	108	131	890	950	862	996	648	498	862	996	648	429
YDT8	800	108	153	1090	1150	862	1196	748	598	862	1196	748	598
YDT10	1000	133	183.5	1290	1350	862	1396	848	698	862	1396	848	698
YDT12	1200	133	183.5	1490	1570	862	1606	953	803	862	1606	953	803
YDT14	1400	159	253.5	1730	1810	862	1856	1078	928	862	1856	1078	928
YDT16	1600	159	253.5	1930	2010	862	2056	1173	1028	862	2056	1178	1028
YDT18	1800	159	283.5	2200	2280	862	2300	1280	1150	862	2300	1280	1150
YDT20	2000	159	283.5	2420	2500	862	2546	1423	1273	862	2546	1423	1273

About the Manufacturer

ZOOMRY has been engineering bulk material handling solutions and accessories since 2002, with a 40,000m² production facility and ISO 9001/14001-certified quality systems. The company's product range includes belt conveyors, components, and protective covers — including both manual and motorized rain cover systems. Export markets include Europe, the Americas, Southeast Asia, and South Africa.

Frequently Asked Questions About Motorized Conveyor Rain Covers

What is a motorized conveyor rain cover?

A motorized conveyor rain cover is an automated protective enclosure equipped with an electric drive system that allows remote-controlled opening and closing of the cover sections. It shields transported materials from rain, snow, dust, and wind while providing convenient maintenance access without manual lifting.

How does the motorized cover operate?

The cover is equipped with an electric motor and drive mechanism that opens and closes the cover sections smoothly. Operation can be controlled via remote control, push-button, or integrated with plant PLC systems. The system includes safety features to prevent unintended operation and protect personnel.

What are the advantages of a motorized rain cover over a manual cover?

The motorized cover offers several advantages: (1) eliminates manual lifting of heavy cover panels, improving operator safety, (2) reduces maintenance time by enabling quick and easy access, (3) can be operated remotely from a control room, (4) allows frequent inspection without physical effort, and (5) can be integrated into automated plant operations.

What belt widths are compatible with ZOOMRY motorized rain covers?

ZOOMRY motorized rain covers are available for standard belt widths ranging from 500 mm to 2,000 mm, covering models YDT5 through YDT20. Custom sizes for non-standard belt widths can be manufactured upon request.

What materials are used for ZOOMRY motorized rain covers?

ZOOMRY motorized rain covers are manufactured from cold-rolled steel sheet or galvanized steel sheet with surface pre-treatment, subjected to roller coating or PVC film lamination, and then baked, cured, and cooled for final formation. This process ensures corrosion resistance, durability, and long service life in harsh outdoor conditions.

What control options are available for the motorized rain cover?

ZOOMRY offers multiple control options: (1) handheld remote control for local operation, (2) wall-mounted push-button stations, (3) integration with plant PLC/DCS systems for automated operation, and (4) manual override options for emergency situations. All systems include safety interlocks and limit switches.
