ZOOMRY take-up pulleys are gravity-force-adjustable belt conveyor components designed to maintain proper belt tension throughout the entire conveyor system. They work in conjunction with drive pulleys and tail pulleys to ensure the belt leaves the drive pulley with adequate tension — preventing slippage and ensuring stable material transport even under varying load conditions.

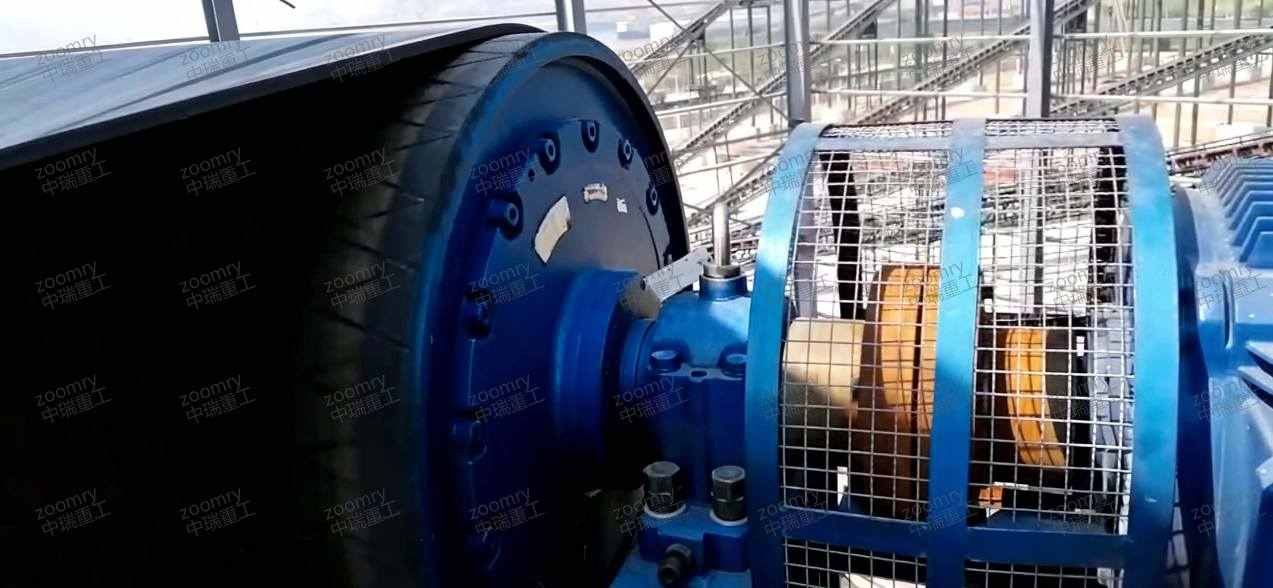

ZOOMRY Take-Up Pulley — Gravity-Force-Adjustable, Automatic Belt Tension Compensation, 50,000+ Hour Service Life
Why Is a Take-Up Pulley Critical for Conveyor Performance?
Belt tension is one of the most critical factors in belt conveyor system performance. Too little tension causes belt slippage on the drive pulley, reducing efficiency and accelerating belt wear. Too much tension stresses bearings, shafts, and belt splices — shortening component life across the entire system. The take-up pulley solves this by automatically compensating for changes in belt length due to elongation, thermal expansion, and load variations.
ZOOMRY weighted take-up pulleys are filled with steel shot to requested weight requirements, providing consistent, maintenance-free tension control. This gravity-based design requires no external power source or manual adjustment — the pulley automatically maintains optimal tension as operating conditions change. For long-distance conveyors in mining and cement applications where belt stretch can be significant, this automatic compensation is essential for 24/7 reliability.
Application
The take-up pulley serves multiple critical functions across the conveyor system:
- Ensures adequate belt tension leaving the drive pulley to avoid any slippage of the belt during operation
- Maintains proper belt tension at the loading point and other critical points along the conveyor
- Compensates for changes in belt length due to elongation and thermal expansion in varying climates
- Provides extra belt length when necessary for splicing and maintenance purposes
Specification
| Belt Conveyor Take-Up Pulley | |
|---|---|
| Items | Content |
| Belt Width | 500-2800 mm (19-110.2 inch) |
| Pulley Length | 500-3200 mm (19-125.9 inch) |
| Diameter | 200-1800 mm (7.8-70.8 inch) |
| Standard | ISO 9001, CEMA, DIN, TUV, etc. |
| Working Life | More than 50,000 hours |

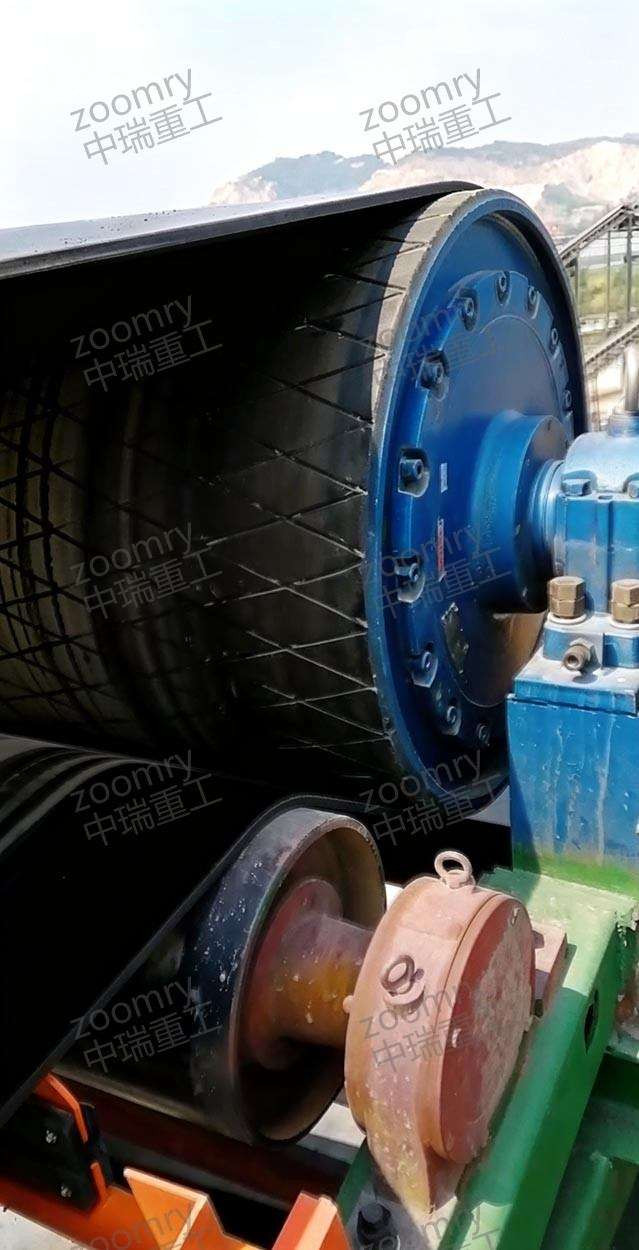

| Surface | Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc. |
| Main Material | Carbon Steel / 16Mn |
| Length of conveyor take-up pulley depends on the width of Conveyor Belt. You can get take-up pulleys with hot vulcanized rubber lagging, plain or grooved, as required by client. | |
