1. Product Overview
ZOOMRY CEMA E return idlers are extra heavy-duty standard return rollers supporting the empty belt on the return side of belt conveyor systems. Built to CEMA E standards for mining, coal, and port applications, these Conveyor idlers prevent belt sagging, reduce wear, and maintain alignment — delivering over 40,000 hours of service life with IP66 labyrinth sealing and high-grade bearings.
As the foundation of the CEMA E return side family — alongside V-return, self-aligning, rubber disc, and spiral variants — standard return idlers provide the baseline belt support that every conveyor requires. They are the most commonly specified return idler, suitable for dry, non-sticky materials where specialized cleaning or tracking features are not required.
2. CEMA E Return Idler Family Comparison
| Return Idler Type | Primary Function | Best For |
|---|---|---|
| Standard Return (E8) | Basic belt support, prevent sagging | Dry materials, standard conveyor sections |
| V-Return (E1) | Self-centering, material shedding | High-speed belts, tracking-critical sections |
| Self-Aligning Return (E5) | Automatic belt tracking correction | Long overland, reversible conveyors |
| Rubber Disc Return (E6) | Self-cleaning, anti-buildup | Sticky/wet materials: coal, clay, overburden |
3. Key Features
Heavy-Duty Steel Pipe — Precision-welded with high concentricity and dynamic balancing for smooth rotation at belt speeds up to 6.5 m/s.
Advanced IP66 Sealing — Multi-stage labyrinth + contact seal system protects bearings from dust and moisture in coal handling and cement environments.
Low Rotation Resistance — ≤2N rotational resistance reduces belt tension requirements and energy consumption across the entire conveyor system.
Premium Bearing Options — Available with SKF, FAG, ZWZ, or HRB deep groove ball bearings (6204–6312) for 40,000+ hour service life.
Corrosion Protection — Hot-dip galvanized, painted, or stainless steel surface finishes for salt and chemical environments.

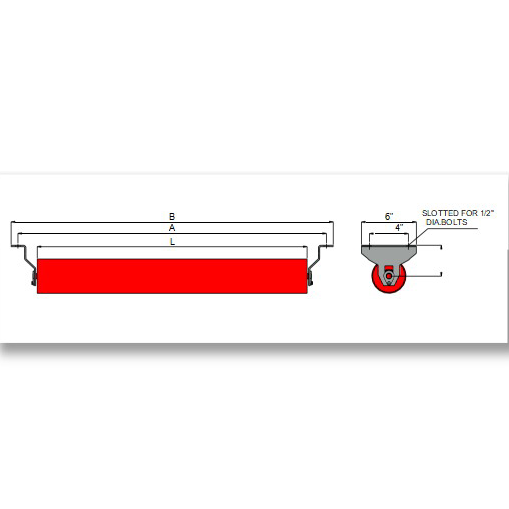

4. Technical Specifications
| Parameter | Specification |
|---|---|
| Roller Diameter | 5" – 6" (127 – 152 mm) |
| Belt Width Range | 36" – 96" |
| Bearing Type | Deep groove ball bearing (6204 – 6312) |
| Sealing Grade | IP66 / Labyrinth + contact seals |
| Service Life | 40,000+ hours |
5. Application Scenarios
Mining — Standard return idlers for dry ore and overburden conveyors where material is non-sticky and belt tracking is stable in mining operations.
Coal Handling — Return side support for dry coal conveyors in preparation plants and coal handling terminals where standard rollers provide cost-effective support.
Cement & Aggregate — Return belt support in cement plants and quarries where IP66 sealing protects against fine dust ingress.
6. Quality Assurance
All ZOOMRY CEMA E return idlers undergo 100% testing for concentricity, rotation resistance (≤2N), sealing integrity (IP66 72-hour water immersion), and bearing smoothness. ISO 9001 certified production with full material traceability from steel sourcing to final assembly ensures 40,000+ hour service life in field applications.
Related Solutions
How to Choose the Right CEMA E Return Idler Type?
Tell us your material type, belt width, and operating conditions — our engineers will recommend the optimal return idler configuration for your conveyor.
CEMA E Return Idler Selection Guide →
