Grasshopper Conveyor

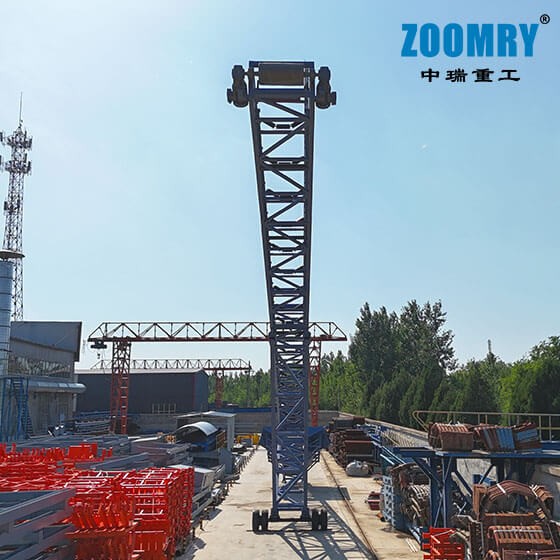

portable radial stacking conveyor

According to the field use needs of material yard, open-pit mine, wharf and concentrator, the equipment can realize flexible movement and stacking.

By rotating the stacking material in the sector area and the stretching characteristic of the blanking point, the stacking material can reach 30,000-50,000 tons. Stackers can be classified into coal stacker, iron ore stacker, granite stacker, etc.

  • Product Detail

The portable mobile stacker is mainly used for stockpiling in the stockyard. Its main function is to increase the stockpiling area, and to stack stockpiles far and near. The stacking distance is 14-15 meters; the maximum height can reach 14 meters.

Speciafication

Type Capacitity Length Power of belt conveyor Travel motor power Max Inclination Stack height Belt Speed
t/h m kw kw ° m m/s
ZR65D 200 20/25 18.5 11 18 6.5/8.0 2.0
ZR80D 300 20/25 22 11 18 6.5/8.0 2.0
ZR100D 400 20/25 30 15 18 6.5/8.0 2.5
ZR120D 550 20/25 37 15 18 6.5/8.0 2.5


The application advantages as follows:

  1. The telescopic length of the stacker can be adjusted, which can further increase the stacking capacity.
  2. The stacker can be moved as a whole, which is convenient for users to change the location of use.
  3. The stacking height can be changed by adjusting the inclination of the stacker through the hydraulic cylinder.
  4. The stacker can be designed according to the user's needs.

More details

Portable Stacker <a href=https://www.zoomryhi.com/stacker.html target='_blank'>mobile stacker</a>

portable radial stacking conveyor

Grasshopper

The included angle of the stacker can be controlled between 4 degrees and 20 degrees.


Why you choose us?

Flexible conveyors easily shift in and out of operation depending on transfer length requirement.

Custom-engineered conveyor truss design extends conveyor life in rugged mining applications.

In-house electrical design interlocks conveyors to automatically stop production in the event of process interruptions.

Reducing operating costs and increase uptime.
