Product Name	Tracked Radial Stacker
Material	High Quality Carbon Steel
Belt Width	800mm - 1600mm; Customer's Request
Max Capacity	450 - 3,500 m³/h (Customer's Request)
Certification	ISO9001; CE; ISO14001; EAC; KCS
Advantages	Portable, rotatable, inclination adjustable, conveying length retractable, radial movement
Application	Mining, Port, Cement, Steel, Metallurgy, Electric Power, Coal, Machinery and Other Industries.

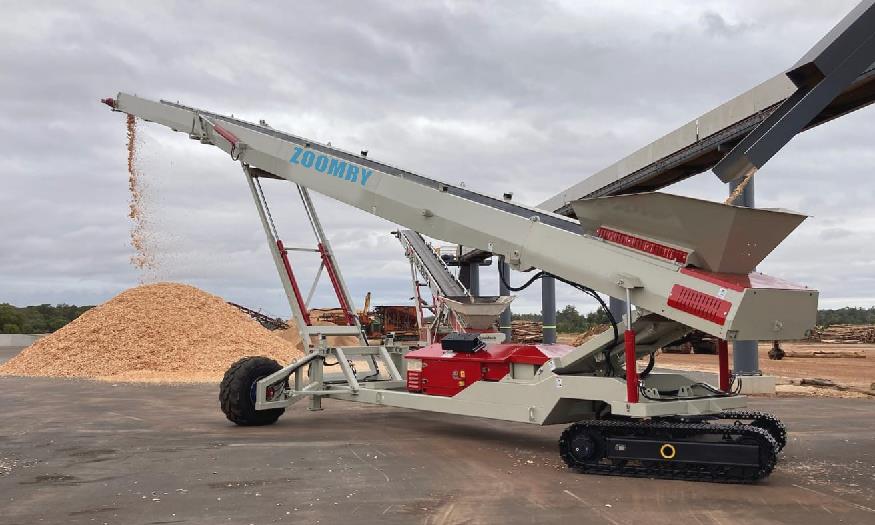

Tracked Radial Stacker

Self-powered diesel hydraulic tracked radial stacking conveyor for maximum mobility and efficiency on soft ground.

Product Overview

ZOOMRY Tracked Radial Stacker is a self-propelled, diesel-powered tracked stacking conveyor designed for high-efficiency radial stockpiling. The tracked undercarriage provides superior stability and traction on uneven terrain, while the radial movement allows for creating large, uniform stockpiles without repositioning the entire machine. Compared to wheeled alternatives, the wheel radial stacker is better suited for firm ground, but the tracked version excels in soft ground mining and unpaved stockyards.

With a complete hydraulic setup, our tracked radial stacker eliminates the need for cranes or additional lifting equipment during setup and relocation. The machine can track in and out of containers for easy transport between job sites, making it ideal for short- to medium-term projects. Its conveyor roller assemblies and drive pulley system are built for continuous heavy-load operation.

Tracked Radial Stacker self-powered diesel hydraulic tracked stacking conveyor

Why Choose ZOOMRY Tracked Radial Stacker?

Self-powered diesel hydraulics – operates independently without external power.
Complete hydraulic setup – no crane required for assembly or relocation.
Track in/track out – easy container loading for transport between sites.
Up to 80% cost savings – significantly reduces labor, maintenance, and fuel expenditures.
Eliminate double handling – avoid handling materials twice with a wheel loader.
Superior on-site mobility – fully tracked for stable operation on uneven terrain.

Applications

Our KTR Tracked Radial Stacking Conveyor is the best choice for bulk material storage stockpiling systems across multiple industries:

Direct primary crusher stockpiling at the material source.
Storing material from screens and secondary crushers.
Storing mineral ores, sand, gravel, and crushed stone.
Storing demolition and construction debris, topsoil, coal, grain, and more.
Taking delivery of crushed material and securely placing it over a quarry face or bench.
Short- to medium-term projects as a mobile system.
Loading of rail wagons, trucks, and ships — works with tracked ship loaders for port stockyards.
Mobile link conveyor integration.

Tracked Radial Stacker vs. Wheel Radial Stacker

Comparison Point	Tracked Radial Stacker	Wheel Radial Stacker
Ground Condition	Soft, muddy, uneven terrain	Firm, level ground
Ground Pressure	Low — distributed via tracks	Higher — concentrated on tires
Mobility	Self-propelled on site; container-transportable	Towable; fast inter-site relocation
Setup Time	Minimal — hydraulic auto-deployment	Minimal — tow and position
Best For	Mining, unpaved stockyards, temporary sites	Quarries, ports, concrete plants

Frequently Asked Questions

Q: What makes the Tracked Radial Stacker different from a wheeled radial stacker?

The tracked undercarriage provides low ground pressure and superior traction on soft, muddy, or uneven terrain — conditions where a wheeled radial stacker would struggle. It's self-propelled on site, eliminating the need for a tow vehicle, and can track directly in and out of containers for transport.

Q: How much can I save with a tracked radial stacking conveyor?

Customers report up to 80% reduction in labor, fuel, and maintenance costs compared to traditional wheel loader re-handling operations. The mobile stacker conveyor approach eliminates double handling entirely.

Q: What materials can the Tracked Radial Stacker handle?

It handles a wide range of bulk materials: mineral ores, sand, gravel, crushed stone, coal, grain, demolition debris, and topsoil. The Conveyor Belt can be specified to match your material's abrasiveness and density.
