Feeding System
Portable hopper feeders and tunnel feeding systems for bulk material handling.
Product Overview
ZOOMRY Feeding System provides reliable and efficient material feeding solutions for mining, quarrying, and aggregate production. Our product range includes portable feeding equipment, hopper feeders, and tunnel feeding systems — all designed for easy setup, mobility, and consistent material flow.
By enhancing material feed points, our feeding solutions enable operations to run at optimum efficiency. The seamless interoperability of our entire array of material feed solutions ensures that equipment integrates smoothly into new or ongoing operations, excelling at feeding both mobile stackers and stationary conveyors.
Whether you need a simple hopper feeder for small-scale operations or a complete tunnel feeding system for large industrial applications, ZOOMRY offers customizable solutions to match your specific material type, capacity, and site conditions.
Feeding System Configurations

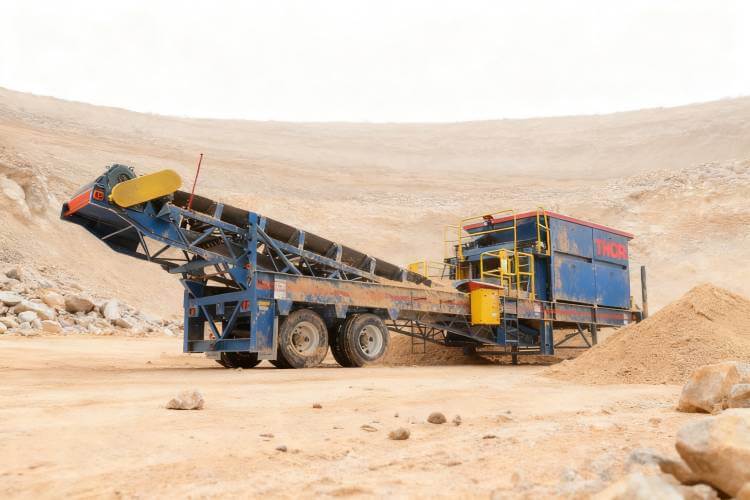

1. Portable Feeding Equipment
Portable feed conveyors are easily set up by producers and are road-transportable between job sites. Numerous sizes and configurations are available to suit different operational requirements — from temporary crusher feeding to mobile stockpile loading. The wheeled chassis and integrated hopper enable deployment in under 30 minutes.
2. Hopper Feeders
Material is loaded into hopper feeders, which discharge at a measured, controlled pace via belt or chain plate. An optional scalping grizzly removes oversize material before it reaches downstream Conveyor Pulleys and crushers. Available in Heavy Duty (up to 3,000 TPH), Low Feed, Tracked, and Static configurations.
3. Tunnel Feeding System
Prefabricated tunnel feeding systems are installed quickly — reducing on-site construction time by up to 60% compared to cast-in-place concrete. The sturdy steel structure prevents settling and deformation, ensuring long-term reliability under heavy stockpile loads. Multiple feeder alternatives — belt, apron, or vibrating — suit coal and cement reclaim tunnels.
Feeding System Comparison
| System Type | Mobility | Capacity Range | Best For | Setup Time |
|---|---|---|---|---|
| Portable Feed Conveyor | Road-transportable | 450 – 900 TPH | Temporary sites, crusher feeding | ≤ 30 min |
| Hopper Feeder | Wheeled / Tracked / Fixed | 800 – 3,000 TPH | Continuous process feeding | 1 – 4 hours |
| Tunnel System | Fixed (prefabricated) | 450 – 900 TPH | Stockpile reclaim, permanent install | 1 – 3 days |
Frequently Asked Questions
Q: How do I choose between a portable feed conveyor and a hopper feeder?
Choose a portable feed conveyor when you need road-transportable mobility and frequent site changes. Choose a hopper feeder when you need higher capacity (up to 3,000 TPH), controlled metered feeding, or a scalping grizzly for oversize removal. For permanent installations, consider a static hopper feeder.
Q: What is a scalping grizzly and do I need one?
A scalping grizzly is a heavy-duty grid installed at the top of the hopper. It removes oversize material — typically above 200-250 mm — before it enters the conveyor. This protects downstream conveyor rollers, belts, and crushers from impact damage. Recommended for blasted rock, demolition debris, and any material with unpredictable particle size.
Q: Can tunnel feeding systems handle corrosive materials like salt or fertilizer?
Yes. For salt and fertilizer applications, we supply tunnel systems with stainless steel contact surfaces, HDPE rollers, and anti-corrosion coating systems to prevent chemical attack and ensure long service life.
Specifications
| Model | Hopper Capacity (yd³) | Hopper Capacity (m³) | Belt Feeder (in × ft) | Belt Feeder (mm × m) | belt conveyor (in × ft) | Belt Conveyor (mm × m) | TPH | MTPH |
|---|---|---|---|---|---|---|---|---|
| Series 12 | 10 | 7.6 | 30×8 – 36×8 | 762×2.4 – 914×2.4 | 30×60 – 36×70 | 762×18.3 – 914×21.3 | 450 – 600 | 409 – 545 |
| Series 900 | 12 – 20 | 9.2 – 15.3 | 30×14 – 42×18 | 762×4.3 – 1,067×5.5 | — | — | 450 – 900 | 409 – 818 |
| Series 1400 | 20 | 15.3 | 36×16 – 42×16 | 914×4.9 – 1,067×4.9 | 30×60 – 36×80 | 762×18.3 – 914×24.4 | 500 – 750 | 455 – 682 |
| Series 1900 | 12 – 20 | 9.2 – 15.3 | 30×8 – 30×12 | 762×2.4 – 762×3.66 | 36 | 914 | — | — |
Related Equipment
Heavy-duty belt or chain plate feeder with 7–24 m³ capacity and up to 3,000 TPH.
Portable road-transportable feed conveyor with hopper and optional scalping grizzly.
Drive-over truck unloader for direct discharge into feeding systems and conveyors.
Industry Solutions
Feeding systems for sugar stockpile management and controlled discharge to conveyors.
Hopper feeders and tunnel systems for biomass feeding with dust-controlled discharge.
